Description:IEC61000−4−2 (ESD): Level 4; SZNUF6401MNWT1G Wettable Flank Package; Low ESD Clamping Voltage; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Integrated EMI Filtering & ESD Protection; S and SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
A good PCB layout for the SNUF6401MNT1G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback loop is properly compensated. Also, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
The maximum ambient temperature range for the SNUF6401MNT1G is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the SNUF6401MNT1G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing practices to ensure the device's reliability in the application.
To troubleshoot issues with the SNUF6401MNT1G, start by verifying that the device is properly powered and that the input voltage is within the specified range. Check the output voltage and current, and ensure that the device is not overheating. Use an oscilloscope to check for oscillations or other anomalies in the output waveform. Consult the datasheet and application notes for more troubleshooting guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SNUF6401MNT1G Overview

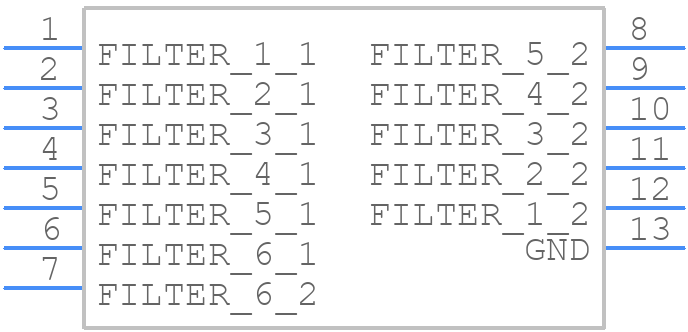

Use the download button to access the SNUF6401MNT1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SNUF6,
or try a keyword search, such as Data Line Filters
