- Part Number SO-0515-01-02-01
- Manufacturer SAMTEC
- Pin Count 1
- Part Category Connector
- Package Category Other

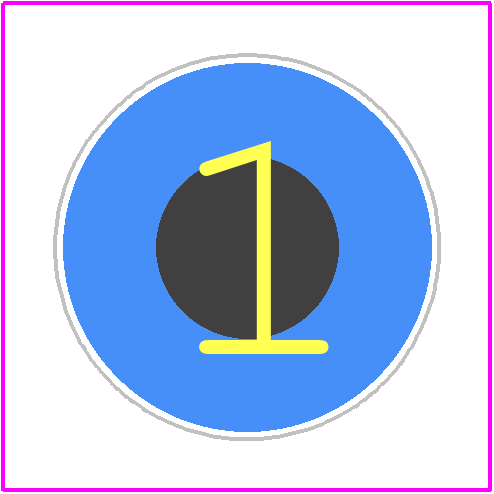

- Footprint Name Other - SO-0515-01-02-01-5
- Released Date May 11, 2020
- Last Modified Date Aug 28, 2023 9:00 AM UTC
- Pinout / Pin List Click Here (Member Only)
SO-0515-01-02-01 Details
-
Manufacturer Part Number:
SO-0515-01-02-01
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
7318.19
-
Factory Lead Time:
2 Weeks, 1 Day
-
Manufacturer:
Samtec Inc
-
Assembly Item Name:
SCREW ITEM
-
Connector Support Type:
CONNECTOR ACCESSORY
-
DIN Conformance:
NO
SO-0515-01-02-01 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
-
Yes, the SO-0515-01-02-01 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
-
The operating temperature range for the SO-0515-01-02-01 is -40°C to 105°C (-40°F to 221°F).
-
Yes, the SO-0515-01-02-01 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The mating cycle life of the SO-0515-01-02-01 is 500 cycles minimum, ensuring reliable connections over an extended period.
Trust Checks
Expert Contribution
System Verified
Community Approved
SO-0515-01-02-01 Overview
Use the download button to access the SO-0515-01-02-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SO-05,
or try a keyword search, such as Assembly Items
