SOMC16031K00GRZ399 Frequently Asked Questions (FAQs)

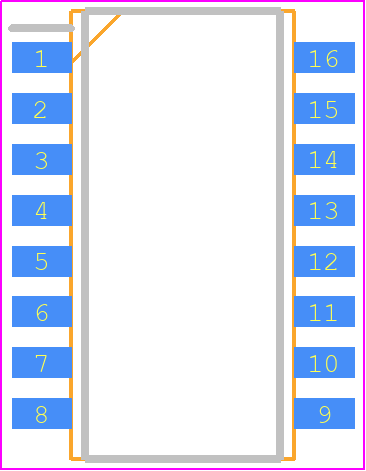

• What is the recommended PCB layout and land pattern for SOMC16031K00GRZ399?
  Vishay provides a recommended PCB layout and land pattern in their application note AN10273, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and minimize thermal resistance.
• How do I handle the thermal interface material (TIM) for SOMC16031K00GRZ399?
  Vishay recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. The TIM should be applied evenly and thinly (typically 0.05 mm to 0.10 mm thick) to the die attach surface. Ensure the TIM is compatible with the device and the PCB material.
• What is the maximum allowed voltage derating for SOMC16031K00GRZ399?
  Vishay recommends derating the maximum voltage by 10% to 20% to ensure reliable operation and to account for variations in manufacturing and operating conditions. This means that if the maximum rated voltage is 160 V, the derated voltage would be 128 V to 144 V.
• How do I ensure the reliability of SOMC16031K00GRZ399 in high-temperature applications?
  To ensure reliability in high-temperature applications, follow Vishay's recommended operating conditions, including temperature derating. Ensure proper thermal management, use a suitable thermal interface material, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
• What are the ESD protection and handling requirements for SOMC16031K00GRZ399?
  Vishay recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. The SOMC16031K00GRZ399 has an ESD rating of Human Body Model (HBM) ≥ 2 kV and Charged Device Model (CDM) ≥ 500 V.
