- Part Number SOP-44E
- Manufacturer 3M
- Pin Count 44
- Part Category Connector
- Package Category Other
- Footprint Name Other - SOP-44E-2
- Released Date May 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SOP-44E Details
-
Manufacturer Part Number:
SOP-44E
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
3M Interconnect
-
YTEOL:
5.75
-
Additional Feature:
STANDARD: UL 94V-0
-
Device Socket Type:
IC SOCKET
-
Device Type Used On:
SOP44
-
Housing Material:
POLYPHENYLENE SULFIDE
-
Number of Contacts:
44
Trust Checks
Community Provided
System Verified
Community Approved
SOP-44E Overview

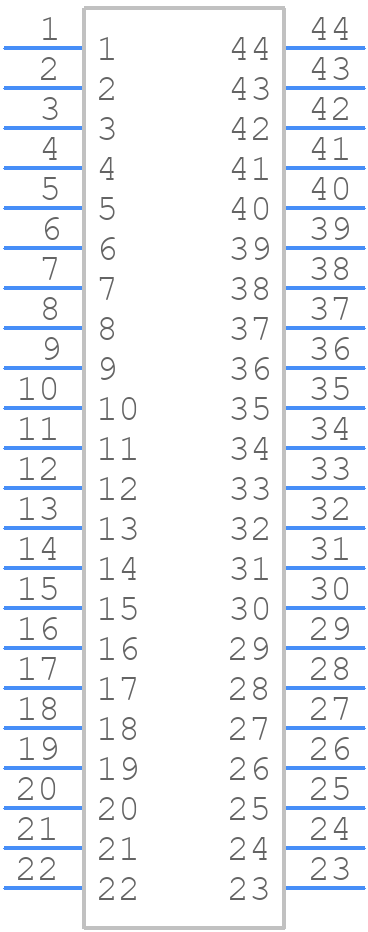

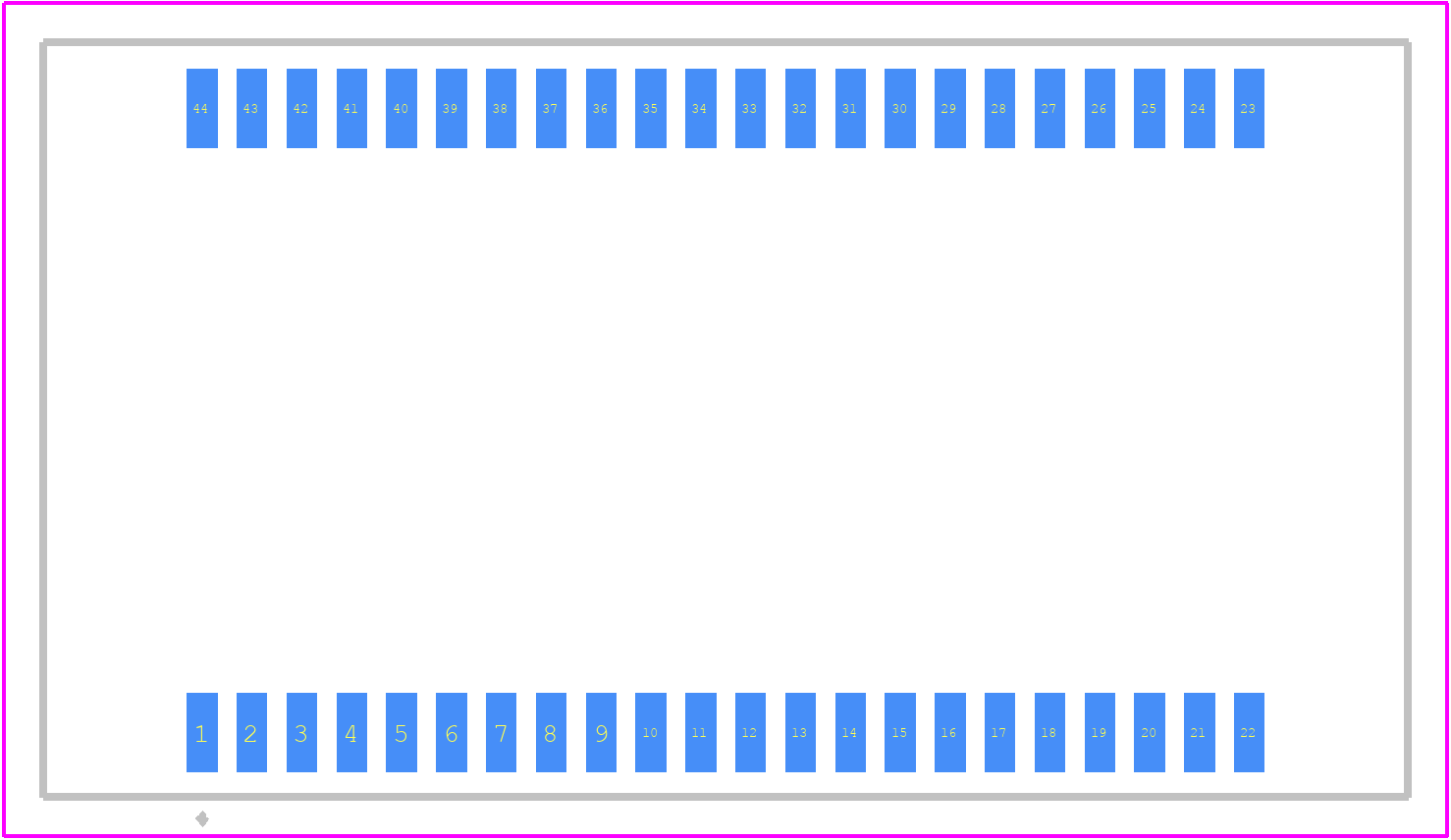

Use the download button to access the SOP-44E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SOP-4,
or try a keyword search, such as Sockets and Chip Carriers
