SP-2G+ - Mini-Circuits

Description: Signal Conditioning 2 Ways MMIC DC Pass Power Splitter, 1420 - 1660 MHz, 50 ohms

Download SP-2G+ Model

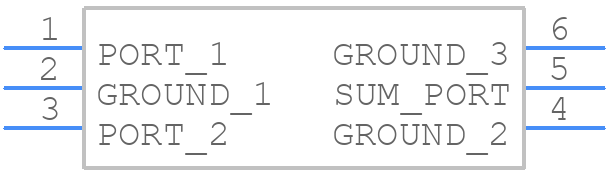

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SP-2G+ - Mini-Circuits PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - CA531
click to zoom
3D Models
SP-2G+ - Mini-Circuits  - 3D model - SOT23 (6-Pin) - CA531
click to zoom

SP-2G+ Details

  • Manufacturer Part Number:

    SP-2G+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE CA531

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.3

  • Additional Feature:

    ISOLATION-MIN (DB):19

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    0.7 dB

  • JESD-609 Code:

    e2

  • Operating Frequency-Max:

    1660 MHz

  • Operating Frequency-Min:

    1420 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.25

SP-2G+ Frequently Asked Questions (FAQs)

  • The maximum input power that the SP-2G+ can handle is +20 dBm. Exceeding this limit may cause damage to the device.
  • To ensure the best possible isolation between the two channels, make sure to use a good quality PCB with proper grounding and shielding. Also, keep the signal traces as short as possible and avoid crossing them over each other.
  • The recommended operating temperature range for the SP-2G+ is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
  • Yes, the SP-2G+ can be used in a switching application. However, it's essential to ensure that the switching frequency is within the device's specified bandwidth, and the input power is within the recommended range.
  • To troubleshoot issues with the SP-2G+, start by checking the input power levels, signal frequencies, and operating temperatures. Also, verify that the device is properly soldered and the PCB is free from defects. If the issue persists, consult the datasheet and application notes or contact Mini-Circuits' technical support.
