SP-2U2+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR/CMBD / SM / RoHS

Download SP-2U2+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

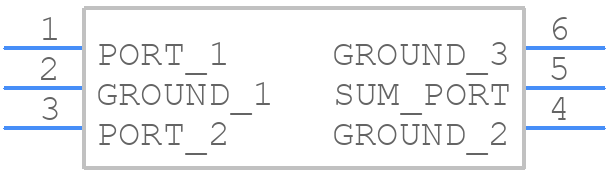

Symbol
SP-2U2+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
SP-2U2+ - Mini-Circuits PCB footprint - Other - Other - SP-2U2+-2
click to zoom
3D Models
SP-2U2+ - Mini-Circuits - 3D model - Other - SP-2U2+-2
click to zoom

SP-2U2+ Details

  • Manufacturer Part Number:

    SP-2U2+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, CASE CA531, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    ISOLATION-MIN (DB):9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Insertion Loss-Max:

    1.4 dB

  • JESD-609 Code:

    e2

  • Operating Frequency-Max:

    2850 MHz

  • Operating Frequency-Min:

    1720 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.5

SP-2U2+ Frequently Asked Questions (FAQs)

  • The SP-2U2+ can operate from -40°C to +85°C, but the recommended operating temperature range is -20°C to +70°C for optimal performance.
  • Yes, the SP-2U2+ is designed to operate in humid environments, but it's recommended to follow proper PCB design and assembly practices to prevent moisture-related issues.
  • Mini-Circuits recommends a minimum spacing of 0.5 mm between the device and other components, and a PCB layout that minimizes signal path lengths and reduces electromagnetic interference (EMI).
  • Yes, the SP-2U2+ can be used in switching power supply applications, but it's essential to ensure that the device is properly bypassed and decoupled to prevent high-frequency noise and voltage transients.
  • The typical current draw of the SP-2U2+ is around 10-15 mA, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SP-2U2+ Overview

Use the download button to access the SP-2U2+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP-2U, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
