- Part Number SP-2W1+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category SOT23 (6-Pin)
- Footprint Name SOT23 (6-Pin) - combiner
- Released Date Aug 15, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SP-2W1+ Details
-
Manufacturer Part Number:
SP-2W1+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, CASE CA531, 6 PIN
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
0
-
Additional Feature:
ISOLATION-MIN (DB):10
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
28.75 dBm
SP-2W1+ Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the SP-2W1+ is -40°C to +85°C, although it's recommended to operate within -20°C to +70°C for optimal performance.
-
Yes, the SP-2W1+ is designed to operate in humid environments, but it's recommended to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which should be followed to ensure optimal performance and minimize parasitic effects.
-
Yes, the SP-2W1+ is designed to withstand moderate vibrations, but it's recommended to follow proper PCB design and assembly guidelines to prevent mechanical stress-related issues.
-
The typical lead time for delivery of the SP-2W1+ varies depending on the quantity and availability, but it's usually around 2-4 weeks for standard orders.
Trust Checks
Community Provided
System Verified
Community Approved
SP-2W1+ Overview

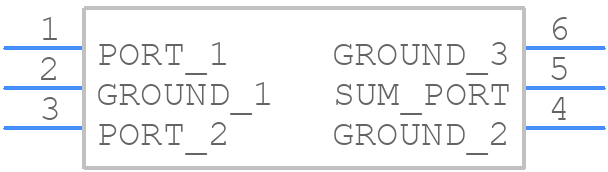

Use the download button to access the SP-2W1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP-2W,
or try a keyword search, such as RF/Microwave Splitter/Combiners
