SP-66 - Triad Magnetics

Description: TRIAD MAGNETICS - SP-66 - Audio Transformer, Red Spec Series, 1 mA, 10 kohm, 10 kohm, Through Hole, Red Spec Series

Download SP-66 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

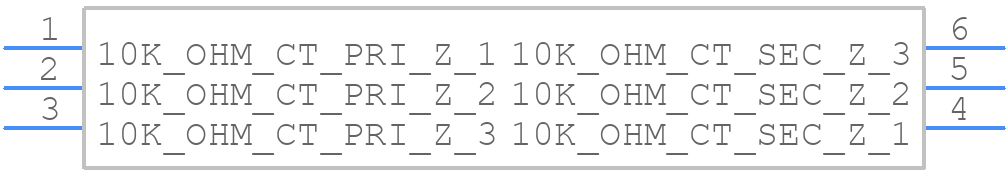

SP-66 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints
SP-66 - Triad Magnetics PCB footprint - Other - Other - SP-66-1
click to zoom
3D Models
SP-66 - Triad Magnetics - 3D model - Other - SP-66-1
click to zoom

SP-66 Details

  • Manufacturer Part Number:

    SP-66

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6

  • Application:

    GENERAL PURPOSE

  • Height:

    11.81 mm

  • Isolation Voltage:

    1000 V

  • JESD-609 Code:

    e4

  • Length:

    10.41 mm

  • Load Resistance:

    1300 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    100 kHz

  • Operating Frequency-Min:

    0.3 kHz

  • Primary Impedance:

    10000 OHMS CT

  • Secondary Impedance:

    10000 OHMS CT

  • Surface Mount:

    NO

  • Terminal Finish:

    GOLD OVER NICKEL

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    7.87 mm

SP-66 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the SP-66 is -40°C to +85°C, although it can withstand storage temperatures from -40°C to +125°C.
  • The SP-66 meets various safety certifications, including UL, cUL, and CE. Ensure you follow the recommended application guidelines and consult with Triad Magnetics for specific certification requirements.
  • The maximum allowable voltage for the SP-66 is 250VAC, although it's recommended to operate within the specified voltage range for optimal performance and reliability.
  • The SP-66 is designed to operate in a variety of environments, including high-humidity conditions. However, it's essential to follow proper storage and handling procedures to prevent moisture-related issues.
  • Select the correct SP-66 model by considering factors such as power rating, voltage, and physical size. Consult the datasheet and Triad Magnetics' application notes for guidance.
