The recommended PCB footprint for the SP03-3.3BTG is a rectangular pad with dimensions of 1.5mm x 0.8mm, with a 0.5mm radius corner. It's essential to follow the recommended footprint to ensure proper soldering and thermal performance.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and place the SP03-3.3BTG on the pads. Use a gentle pushing motion to ensure the device is seated properly. Avoid applying excessive force, which can damage the device.
The SP03-3.3BTG has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at extreme temperatures for extended periods.
While the SP03-3.3BTG is a high-quality device, it's essential to consult with Littelfuse Inc or a qualified representative to determine its suitability for high-reliability or aerospace applications. Additional testing and certification may be required to meet the specific requirements of these industries.
Handle the SP03-3.3BTG by the body, avoiding touching the leads or electrical contacts. Store the devices in their original packaging or in a dry, ESD-protected environment. Avoid exposing the devices to moisture, extreme temperatures, or physical stress.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP03-3.3BTG Overview

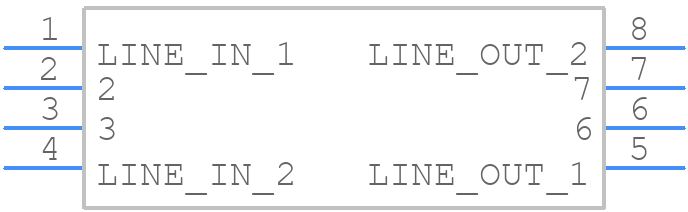

Use the download button to access the SP03-3.3BTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP03-,
or try a keyword search, such as Transient Suppressors
