SP0524PUTG footprint, schematic symbol and 3D model by LITTELFUSE

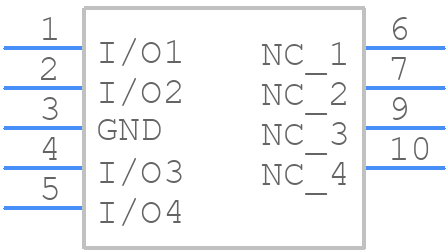

Symbol

click to zoom

PCB Footprints

SP0524PUTG - LITTELFUSE PCB footprint - Other - Other - SP0524PUTG-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SP0524PUTG
Part Number SP0524PUTG
Manufacturer LITTELFUSE
Pin Count 9
Part Category Diode
Package Category Other
Footprint Name Other - SP0524PUTG-1
Released Date Jan 13, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SP0524PUTG Details

Manufacturer Part Number:
SP0524PUTG
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Manufacturer:
Littelfuse Inc
YTEOL:
0
Additional Feature:
LOW CAPACITANCE, ULTRA LOW CAPACITANCE
Breakdown Voltage-Min:
6 V
Breakdown Voltage-Nom:
6.5 V
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code:
MO-229
JESD-30 Code:
R-PDSO-N10
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
28 W
Number of Elements:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Reference Standard:
AEC-Q101; IEC-61000-4-5
Rep Pk Reverse Voltage-Max:
5 V
Surface Mount:
YES
Technology:
ZENER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
10

SP0524PUTG Frequently Asked Questions (FAQs)

A good PCB layout for the SP0524PUTG involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the TVS diode and the protected circuit. A 4-layer PCB with a dedicated ground plane is recommended.
The SP0524PUTG is designed to handle high surge currents. It can withstand a maximum surge current of 24A (8/20μs) and is compliant with IEC 61000-4-5 (Lightning) and ISO 7637-2 (Automotive) standards.
The SP0524PUTG operates over a temperature range of -40°C to 150°C. The device's performance remains stable across this range, but the leakage current may increase at higher temperatures.
Yes, the SP0524PUTG is suitable for automotive applications. It meets the requirements of ISO 7637-2 and is certified to AEC-Q101, making it a reliable choice for automotive systems.
The SP0524PUTG is designed to withstand ESD strikes and has an ESD rating of ±30kV (Human Body Model) and ±30kV (Contact Discharge). It meets the requirements of IEC 61000-4-2.

Trust Checks

Expert Contribution

System Verified

Community Approved

SP0524PUTG Overview

Use the download button to access the SP0524PUTG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SP052, or try a keyword search, such as Transient Suppressors
