The recommended PCB footprint for the SP1004U-ULC-04UTG is a 0402 package with a land pattern of 0.5mm x 0.3mm. It's essential to follow the recommended footprint to ensure proper soldering and thermal performance.
To ensure reliability in high-temperature applications, it's crucial to follow the recommended derating curves for voltage and current. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature below the maximum rating of 150°C.
The SP1004U-ULC-04UTG has a maximum surge current rating of 100A for 8/20μs waveform, as per the IEC 61000-4-5 standard. This rating ensures the device can withstand high surge currents without failing.
While the SP1004U-ULC-04UTG is primarily designed for ESD protection, it can be used in high-frequency applications up to 1GHz. However, it's essential to consider the device's parasitic capacitance and inductance, which may affect the signal integrity at high frequencies.
When selecting a variant, consider the required working voltage, capacitance, and ESD protection level. The SP1004U-ULC-04UTG is available in different variants, such as the -04UTG, -04UTR, and -04UTS, each with varying capacitance and ESD protection levels. Choose the variant that best matches your application's requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP1004U-ULC-04UTG Overview

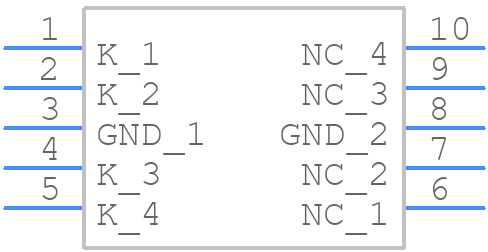

Use the download button to access the SP1004U-ULC-04UTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP100,
or try a keyword search, such as Transient Suppressors
