Littelfuse provides a recommended PCB layout and land pattern in their application note AN9313, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and reliability.
To select the correct TVS diode, consider factors such as the maximum voltage, current, and power rating required for your application. You should also consider the clamping voltage, response time, and capacitance. Littelfuse provides a TVS Diode Selection Guide that can help with this process.
The SP1050-04BTG is a specific part number with a unique combination of characteristics, such as voltage rating, power rating, and package type. Compare the datasheets of similar parts to determine the differences in specifications, features, and performance.
To ensure reliability and longevity, follow proper design and assembly guidelines, such as using a robust PCB design, selecting compatible components, and adhering to recommended soldering and handling procedures. Additionally, consider environmental factors, such as temperature and humidity, and ensure the device is operated within its specified ratings.
The SP1050-04BTG is designed for general-purpose ESD protection and may not be suitable for high-frequency applications. Littelfuse offers other TVS diodes specifically designed for high-frequency applications, such as the SPxxx-HF series. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP1050-04BTG Overview

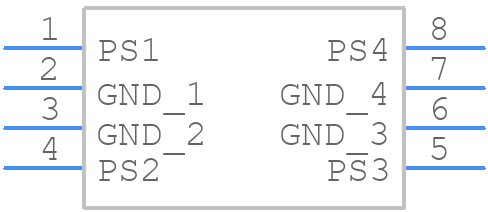

Use the download button to access the SP1050-04BTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP105,
or try a keyword search, such as Transient Suppressors
