SP2-P-DC48V footprint, schematic symbol and 3D model by Panasonic

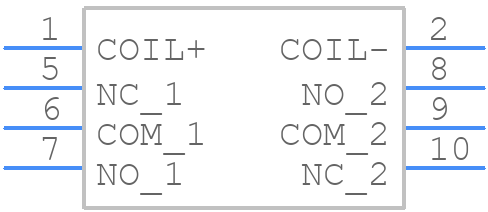

Symbol

click to zoom

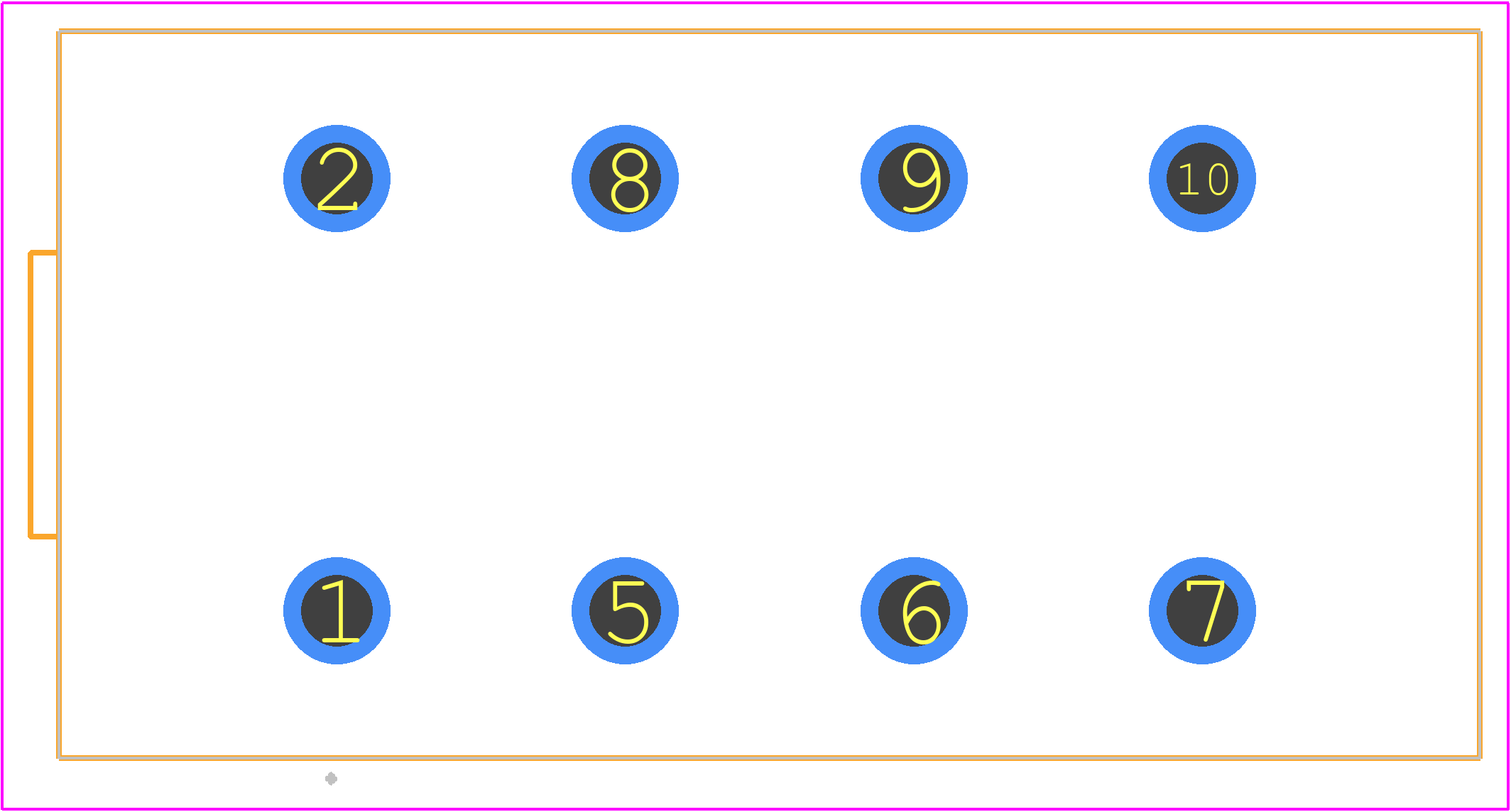

PCB Footprints

SP2-P-DC48V - Panasonic PCB footprint - Other - Other - SP2-P-DC48V-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SP2-P-DC48V
Part Number SP2-P-DC48V
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SP2-P-DC48V-1
Released Date Jan 3, 2021
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

SP2-P-DC48V Details

Manufacturer Part Number:
SP2-P-DC48V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
28 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Body Breadth:
25.6 mm
Body Height:
22 mm
Body Length or Diameter:
50 mm
Coil Current(DC)-Max:
0.006 A
Coil Operate Voltage(DC):
33.6 V
Coil Power:
300 mW
Coil Release Voltage(DC):
4.8 V
Coil Resistance:
7700 Ω
Coil Voltage(DC)-Max:
48 V
Coil Voltage-Nom:
48 V
Coil/Input Supply Type:
DC
Contact (AC) Max Power Rating R Load:
3750VA@250VAC
Contact (AC) Max Rating R Load:
15A@250VAC
Contact Current(AC)-Max:
15 A
Contact Current(DC)-Max:
10 A
Contact (DC) Max Power Rating R Load:
300W@30VDC
Contact (DC) Max Rating R Load:
10A@30VDC
Contact Resistance:
30 mΩ
Contact Voltage(AC)-Max:
250 V
Contact Voltage(DC)-Max:
30 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
End Contact Material:
Silver Tin Oxide
End Contact Plating:
GOLD
Input Switching Control Type:
Random
Insulation Resistance:
1000000000 Ω
Mounting Feature:
THROUGH HOLE-STRAIGHT
Number of Terminals:
10
Operate Time:
30 ms
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-50 °C
Packing Method:
BOX
Physical Dimension:
50mm x 25.6mm x 22mm
Reference Standard:
CSA; TUV; UL
Relay Action:
MOMENTARY
Relay Form:
2 FORM C
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
20 ms
Surface Mount:
NO
Terminal Length:
0.004000508001016002 inch
Termination Type:
SOLDER
