- Part Number SP2525NUTG
- Manufacturer LITTELFUSE
- Pin Count 13
- Part Category TVS Diode (Uni-directional)
- Package Category Other
- Footprint Name Other - SP2525NUTG-1
- Released Date Apr 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SP2525NUTG Details
-
Manufacturer Part Number:
SP2525NUTG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Manufacturer:
Littelfuse Inc
-
YTEOL:
6
-
Additional Feature:
LOW CAPACITANCE
-
Breakdown Voltage-Min:
5.5 V
-
Breakdown Voltage-Nom:
7 V
-
Clamping Voltage-Max:
11 V
SP2525NUTG Frequently Asked Questions (FAQs)
-
Littelfuse provides a recommended PCB layout and land pattern in their application note AN9313, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and to prevent electrical overstress.
-
While the SP2525NUTG is rated for operation up to 150°C, it's essential to consider the derating curves provided in the datasheet. For high-temperature applications, it's recommended to consult with Littelfuse's application engineers to ensure the device can meet the specific requirements.
-
Littelfuse provides a TVS Diode Selection Guide that can help engineers choose the right device based on parameters such as voltage, current, and package type. Additionally, consulting with Littelfuse's application engineers or using their online selection tools can aid in the selection process.
-
The SP2525NUTG is a specific device with unique characteristics, such as its voltage rating, power rating, and package type. Comparing the datasheets of similar devices can help identify the differences. Additionally, consulting with Littelfuse's application engineers can provide insight into the specific features and benefits of each device.
-
Littelfuse is a reputable manufacturer with a strong focus on quality and reliability. Ensuring the authenticity of the device, following proper storage and handling procedures, and adhering to recommended soldering and assembly guidelines can help ensure the reliability and quality of the SP2525NUTG in your design.
Trust Checks
Expert Contribution
System Verified
Community Approved
SP2525NUTG Overview

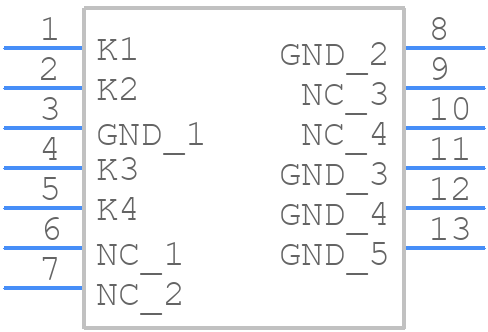

Use the download button to access the SP2525NUTG schematic symbol, PCB footprint, and 3D model.
