SP2555NUTG - LITTELFUSE

Description: TVS Diode Arrays (SPA ® Diodes) Lightning Surge Protection - SP3374NUTG

Download SP2555NUTG Model

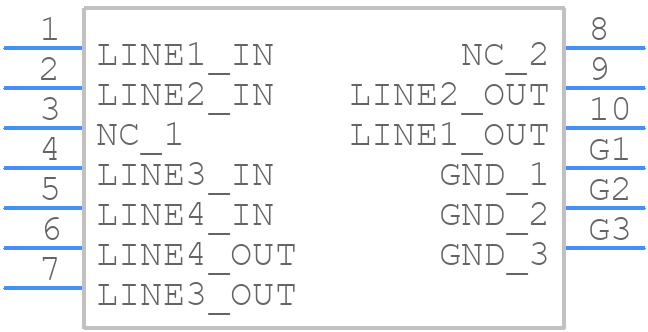

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SP2555NUTG - LITTELFUSE PCB footprint - Other - Other - SP2555NUTG-2
click to zoom
3D Models
SP2555NUTG - LITTELFUSE  - 3D model - Other - SP2555NUTG-2
click to zoom

SP2555NUTG Details

  • Manufacturer Part Number:

    SP2555NUTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.86

  • Additional Feature:

    LOW CAPACITANCE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MO-229

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1000 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

SP2555NUTG Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SP2555NUTG is a 5-pin SOT23 package with a minimum pad size of 0.8mm x 0.8mm and a thermal pad size of 2.5mm x 2.5mm.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes thermal stress on the component.
  • The SP2555NUTG has an operating temperature range of -40°C to 150°C, but it's recommended to operate within -20°C to 125°C for optimal performance and reliability.
  • Yes, the SP2555NUTG is AEC-Q101 qualified, making it suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure optimal performance and reliability.
  • To prevent ESD damage, handle the SP2555NUTG with an anti-static wrist strap or mat, and ensure the PCB is properly grounded. Avoid touching the component pins or exposing them to static electricity.
