- Part Number SP2996BEN-L
- Manufacturer EXAR
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-8N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
SP2996BEN-L Details
-
Manufacturer Part Number:
SP2996BEN-L
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Part Package Code:
SOIC
-
Package Description:
NSOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Exar Corporation
-
JESD-30 Code:
R-PDSO-G8
-
Length:
4.9 mm
SP2996BEN-L Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the SP2996BEN-L is -40°C to +85°C.
-
To ensure reliable data transmission, it is recommended to use a proper PCB layout, follow the recommended termination scheme, and use a clock frequency within the specified range (up to 100 MHz).
-
The maximum cable length supported by the SP2996BEN-L is approximately 10 meters (33 feet) at a data rate of 100 Mbps.
-
Yes, the SP2996BEN-L supports multi-point bus configurations, but it is recommended to use a repeater or a hub to ensure signal integrity and reliability.
-
To troubleshoot issues with the SP2996BEN-L, check the power supply, clock frequency, and signal integrity. Use an oscilloscope to verify the signal waveform and frequency. Also, ensure that the device is properly configured and terminated.
Trust Checks
System Verified
SP2996BEN-L Overview

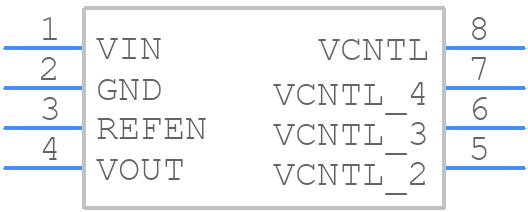

Use the download button to access the SP2996BEN-L schematic symbol, PCB footprint, and 3D model.
