A good PCB layout for the SP3011-06UTG should include a solid ground plane, short traces, and minimal inductance. Place the TVS diode close to the input pins and use a common ground point for all components. Avoid routing high-frequency signals near the TVS diode.
Consider the maximum voltage, current, and power requirements of your system. The SP3011-06UTG is rated for 6V and 300W. Ensure the TVS diode's breakdown voltage is higher than the maximum voltage in your system. Also, consider the response time, clamping voltage, and capacitance of the TVS diode.
The SP3011-06UTG has an operating temperature range of -40°C to 150°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device for high-temperature applications.
The SP3011-06UTG is suitable for high-frequency applications up to 1 GHz. However, the device's performance may degrade at very high frequencies due to parasitic inductance and capacitance. Consider using a TVS diode with a lower capacitance and inductance for high-frequency applications.
Follow the recommended soldering profile and handling procedures to prevent damage to the device. Ensure the TVS diode is properly aligned and seated on the PCB. Use a soldering iron with a temperature range of 250°C to 260°C and a solder with a melting point above 217°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP3011-06UTG Overview

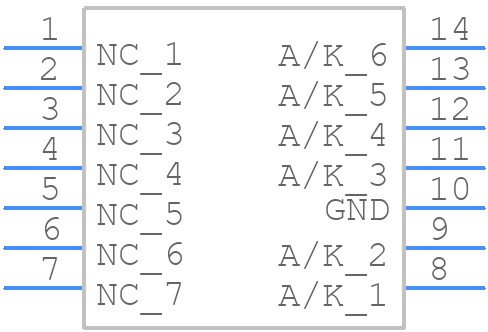

Use the download button to access the SP3011-06UTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP301,
or try a keyword search, such as Transient Suppressors
