Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to prevent thermal and electrical issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver IC with built-in current limiting to reduce the inrush current.
The maximum allowable voltage drop across the relay contacts is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the voltage drop below 1V to ensure reliable contact operation and to prevent excessive heating.
While the relay is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Ensure proper heat sinking and airflow to prevent overheating, which can affect the relay's lifespan and performance.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and keeping sensitive components away from the relay. Additionally, consider using shielding, filtering, or other EMC mitigation techniques to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP4-P-DC5V Overview

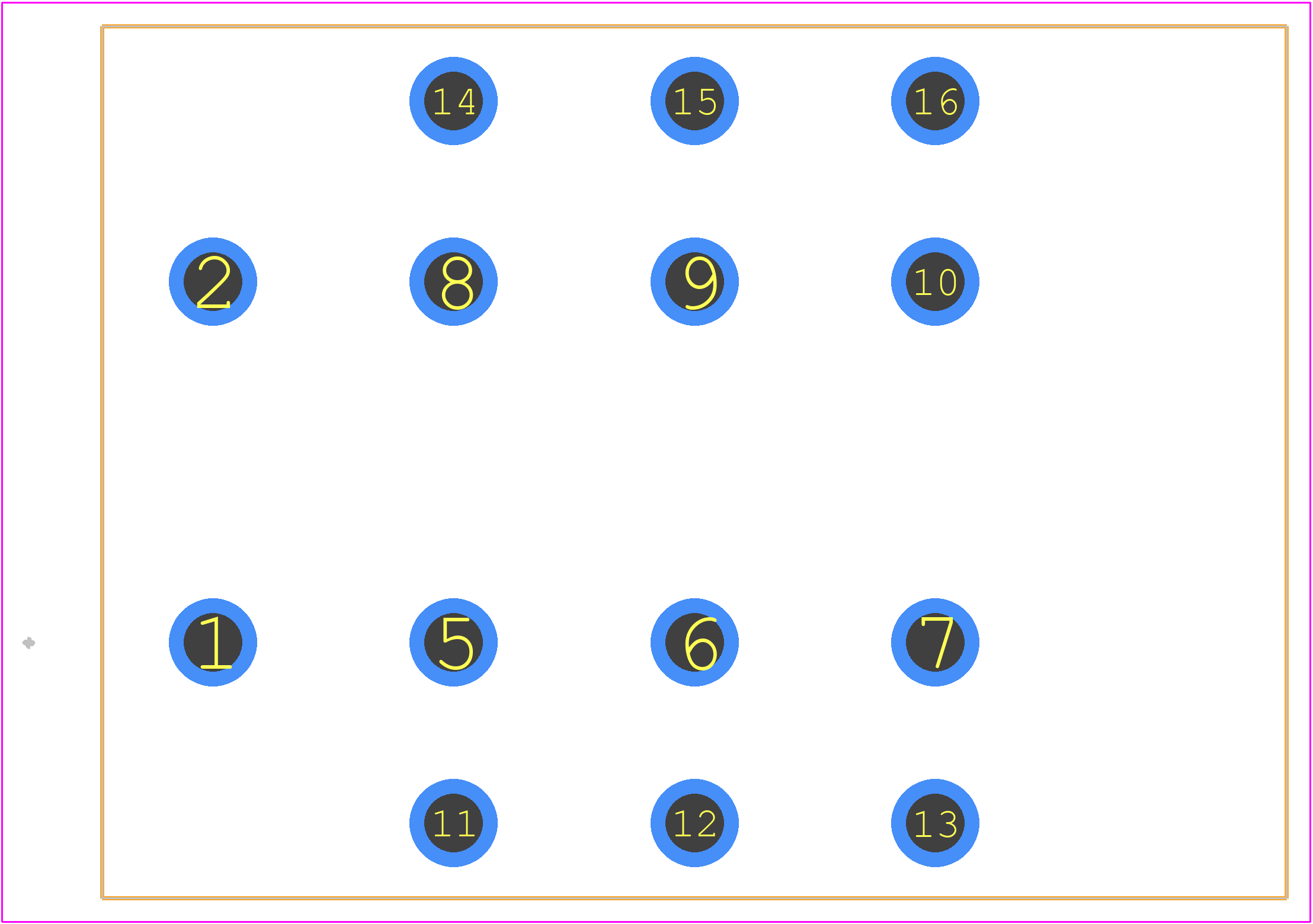

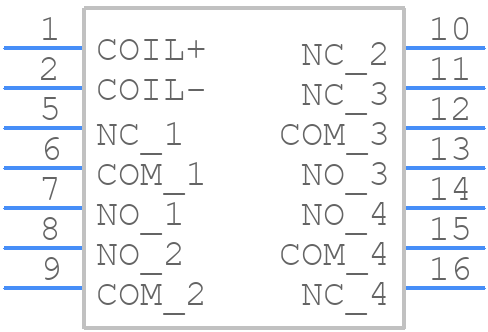

Use the download button to access the SP4-P-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP4-P,
or try a keyword search, such as Power/Signal Relays
