SP4044-04ATG - LITTELFUSE

Description: ESD Suppressor Diode TVS Uni-Dir 2.8V Automotive 10-Pin MSOP T/R

Download SP4044-04ATG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

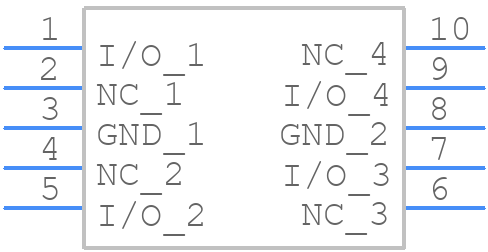

Symbol
SP4044-04ATG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
SP4044-04ATG - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-10
click to zoom
3D Models
SP4044-04ATG - LITTELFUSE - 3D model - Small Outline Packages - MSOP-10
click to zoom

SP4044-04ATG Details

  • Manufacturer Part Number:

    SP4044-04ATG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.73

  • Additional Feature:

    LOW CAPACITANCE

  • Clamping Voltage-Max:

    6 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MO-187BA

  • JESD-30 Code:

    S-PDSO-G10

  • Non-rep Peak Rev Power Dis-Max:

    500 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q101, IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    2.8 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    2.8 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

SP4044-04ATG Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the SP4044-04ATG can be found in the Littelfuse application note AN9313, which provides guidelines for PCB layout and assembly.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum surge current rating for the SP4044-04ATG is 40A for 1ms, as specified in the datasheet. However, it's recommended to consult with Littelfuse application engineers for specific surge current requirements.
  • Yes, the SP4044-04ATG is AEC-Q101 qualified, making it suitable for use in automotive applications. However, it's recommended to consult with Littelfuse application engineers to ensure compliance with specific automotive requirements.
  • The recommended storage and handling procedure for the SP4044-04ATG can be found in the Littelfuse application note AN9312, which provides guidelines for handling and storage of sensitive electronic components.
