A good PCB layout for the SP4065-08ATG involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a common ground point for the device and the protected circuit.
To choose the correct TVS diode, consider the following factors: voltage rating, peak pulse current, and response time. Ensure the TVS diode's voltage rating is higher than the maximum voltage in your circuit, and its peak pulse current rating is higher than the expected surge current. The response time should be fast enough to protect your circuit from the expected surge duration.
The SP4065-08ATG has an operating temperature range of -40°C to 150°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
The SP4065-08ATG is suitable for high-frequency circuits up to 1 GHz. However, it's essential to consider the device's parasitic capacitance and inductance, which may affect the circuit's performance at high frequencies.
To ensure proper soldering, follow the recommended soldering profile, and use a solder with a melting point below 260°C. Apply a small amount of solder to the PCB pads, and use a soldering iron with a temperature-controlled tip to avoid overheating the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP4065-08ATG Overview

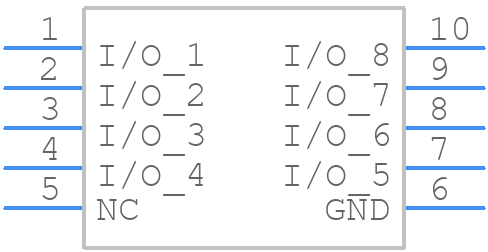

Use the download button to access the SP4065-08ATG schematic symbol, PCB footprint, and 3D model.
