SP6661EN-L - MaxLinear, Inc.

Description: MAX LINEAR - SP6661EN-L - DC/DC Adjustable Charge Pump Voltage Converter, 1.5V to 5.3V in, -5.3V to -1.5V/200 mA out, NSOIC-8

Download SP6661EN-L Model
Schematic

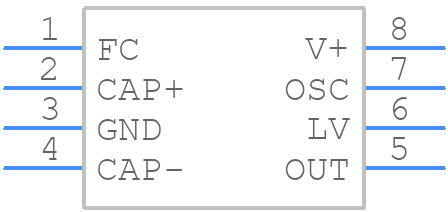

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SP6661EN-L - MaxLinear, Inc. PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin NSOIC
click to zoom
3D Models
SP6661EN-L - MaxLinear, Inc.  - 3D model - Small Outline Packages - 8-pin NSOIC
click to zoom

SP6661EN-L Details

  • Manufacturer Part Number:

    SP6661EN-L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    MaxLinear Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    5.3 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    1250 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

SP6661EN-L Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode choke to filter the power supply.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Also, ensure the bias resistors (RBIAS) are correctly sized and connected.
  • The recommended input impedance is 50 ohms, but it can be adjusted to match the specific application requirements. However, impedance mismatch may affect the device's performance.
  • Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good thermal contact between the device and the heat sink. Keep the ambient temperature below 85°C for optimal performance.
  • The maximum allowable power dissipation is 1.5W. Exceeding this limit may cause the device to overheat and affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SP6661EN-L Overview

Use the download button to access the SP6661EN-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP666, or try a keyword search, such as Switching Regulator or Controllers
