A good PCB layout for the SP720ABG involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the device and the protection components. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and then place the SP720ABG on the PCB. Use a reflow oven or a hot air gun to solder the device. Avoid overheating or applying excessive force, which can damage the device.
The SP720ABG can operate safely within a temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
While the SP720ABG is a high-quality device, it may not meet the specific requirements for high-reliability or aerospace applications. Littelfuse offers other devices, such as the SP720AHRG, which are specifically designed for high-reliability applications. Consult with Littelfuse or a qualified engineer to determine the best device for your specific application.
To troubleshoot issues with the SP720ABG, start by verifying the device's pinout and ensuring proper connections. Check the input and output voltages, and verify that the device is properly soldered to the PCB. Use an oscilloscope to analyze the device's behavior and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP720ABG Overview

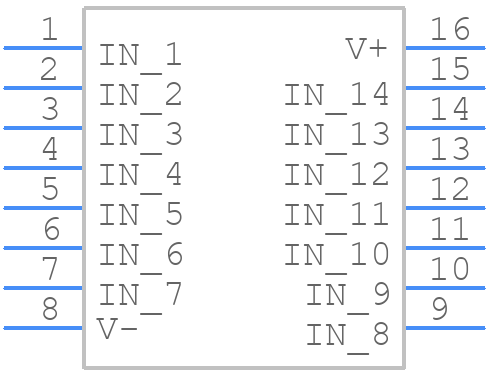

Use the download button to access the SP720ABG schematic symbol, PCB footprint, and 3D model.
