A good PCB layout for the SP720ABTG involves keeping the input and output traces separate, using a ground plane, and minimizing lead lengths. It's also recommended to use a 10nF capacitor between the VIN and GND pins to filter out noise.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and then place the SP720ABTG onto the PCB. Use a reflow oven or a hot air gun to melt the solder paste, and ensure the component is securely attached to the PCB.
The SP720ABTG has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
The SP720ABTG is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. It's recommended to consult with Littelfuse Inc or a qualified reliability engineer to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the SP720ABTG, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise or oscillations on the input and output lines. If the issue persists, consult the datasheet or contact Littelfuse Inc's technical support team for assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP720ABTG Overview

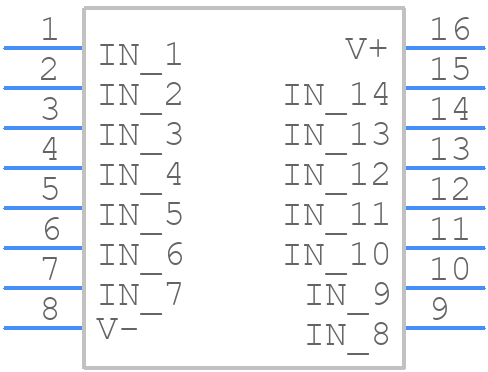

Use the download button to access the SP720ABTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP720,
or try a keyword search, such as Transient Suppressors
