SP8M41HZGTB - ROHM Semiconductor

Description: 80V Dual Nch+Pch Automotive Power MOSFET

Download SP8M41HZGTB Model

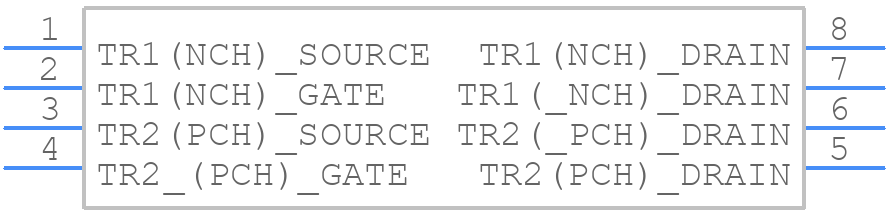

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SP8M41HZGTB - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead sop
click to zoom
3D Models
SP8M41HZGTB - ROHM Semiconductor  - 3D model - Small Outline Packages - 8 lead sop
click to zoom

SP8M41HZGTB Details

  • Manufacturer Part Number:

    SP8M41HZGTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-05-21

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.6

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    80 V

  • Drain Current-Max (ID):

    3.4 A

  • Drain-source On Resistance-Max:

    0.16 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    40 pF

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    2 W

  • Pulsed Drain Current-Max (IDM):

    13.6 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SP8M41HZGTB Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends following the derating curves in the datasheet, and ensuring that the device is operated within the specified temperature range. Additionally, consider using a heat sink or thermal interface material to reduce junction temperature.
  • While the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 6.5V. Exceeding this voltage can cause permanent damage to the device.
  • Yes, the SP8M41HZGTB is suitable for high-frequency switching applications. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure that the PCB layout is optimized for high-frequency operation.
  • ROHM recommends following proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the device is stored in an ESD-protected environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
