ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink or thermal management system to keep the device temperature within the recommended range.
ROHM recommends a soldering profile with a peak temperature of 260°C, a dwell time above 240°C of 30-60 seconds, and a total process time of 60-120 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
To prevent electrostatic discharge (ESD) damage, handle the device by the body or pins, and avoid touching the pins or leads. Use an ESD wrist strap or mat, and ensure that the workspace and equipment are ESD-protected. Follow the recommended ESD handling procedures for sensitive devices.
Store the device in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 125°C, and the relative humidity should be below 60%. Avoid storing the device in environments with high temperatures, humidity, or exposure to chemicals.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SP8M4HZGTB Overview

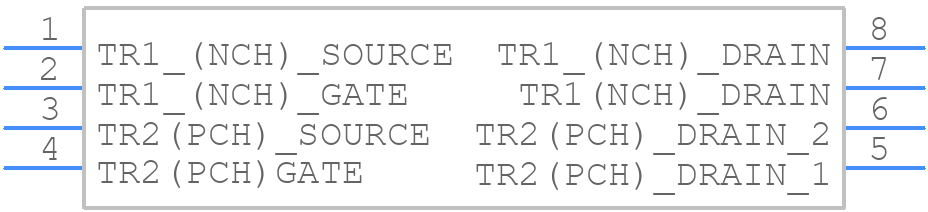

Use the download button to access the SP8M4HZGTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SP8M4,
or try a keyword search, such as Power Field-Effect Transistors
