SP9Q8GH2AHW01 - SMARTsemi

Description: 8GB MLC, eMMC 5.1, 100-FBGA, Wide Temp,2.7 – 3.6V, 1.7 – 1.95V,111/150mA,73/82mA,220/870µA,0-200MHz -40°C to +105°C

Download SP9Q8GH2AHW01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SP9Q8GH2AHW01 model

Email notifications will be applied after download.

Send part feedback

Symbol

SP9Q8GH2AHW01 - SMARTsemi - PCB symbol

PCB Footprints

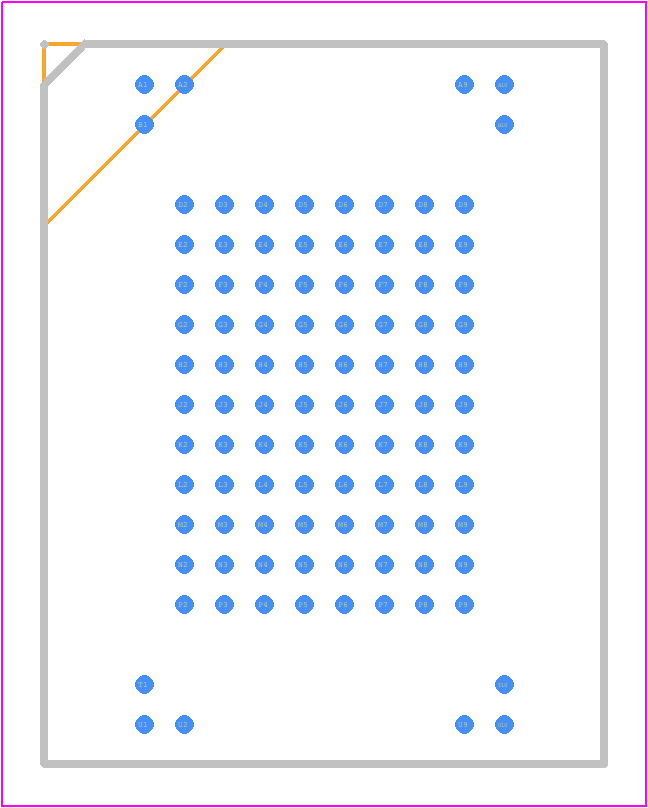

SP9Q8GH2AHW01 - SMARTsemi PCB footprint - BGA - BGA - 100-Ball BGA Dimensions - 14 mm x 18 mm-2

3D Models

SP9Q8GH2AHW01 - SMARTsemi - 3D model - BGA - 100-Ball BGA Dimensions - 14 mm x 18 mm-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SP9Q8GH2AHW01
Part Number SP9Q8GH2AHW01
Manufacturer SMARTsemi
Pin Count 100
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 100-Ball BGA Dimensions - 14 mm x 18 mm-2
Released Date Nov 28, 2025
Last Modified Date Nov 28, 2025 4:44 AM UTC
Pinout / Pin List Click Here (Member Only)

SP9Q8GH2AHW01 Details

Manufacturer Part Number:
SP9Q8GH2AHW01
Manufacturer:
SmartSemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SP9Q8GH2AHW01 Overview

Use the download button to access the SP9Q8GH2AHW01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SP9Q8, or try a keyword search, such as Flash Memories
