The recommended operating temperature range for the SPC20508 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point compatible with the device's lead-free finish, and avoid applying excessive heat or mechanical stress during the soldering process.
The maximum allowable voltage for the SPC20508's input pins is 5.5V, as specified in the datasheet. Exceeding this voltage may cause damage to the device or affect its performance.
While the SPC20508 is designed to operate in a variety of environments, it's essential to take precautions when using it in high-humidity conditions. Ensure the device is properly sealed and conformally coated to prevent moisture ingress, and follow the recommended storage and handling guidelines to minimize the risk of damage or corrosion.
To troubleshoot issues with the SPC20508's output signal, start by verifying the input signal and power supply voltage. Check for proper signal termination, and ensure the output load is within the recommended specifications. If the issue persists, consult the datasheet's troubleshooting section or contact SPC Multicomp's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SPC20508 Overview

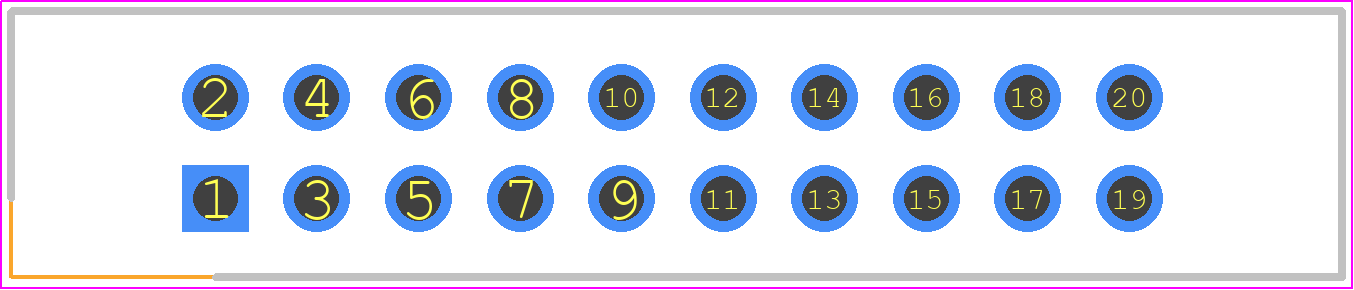

Use the download button to access the SPC20508 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC20,
or try a keyword search, such as Headers and Edge Type Connectors
