SPC5121YVY400B - NXP

Description: 32-bit Microcontrollers - MCU TELEMATICS PROCESSOR

Download SPC5121YVY400B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC5121YVY400B - NXP - PCB symbol
click to zoom
PCB Footprints

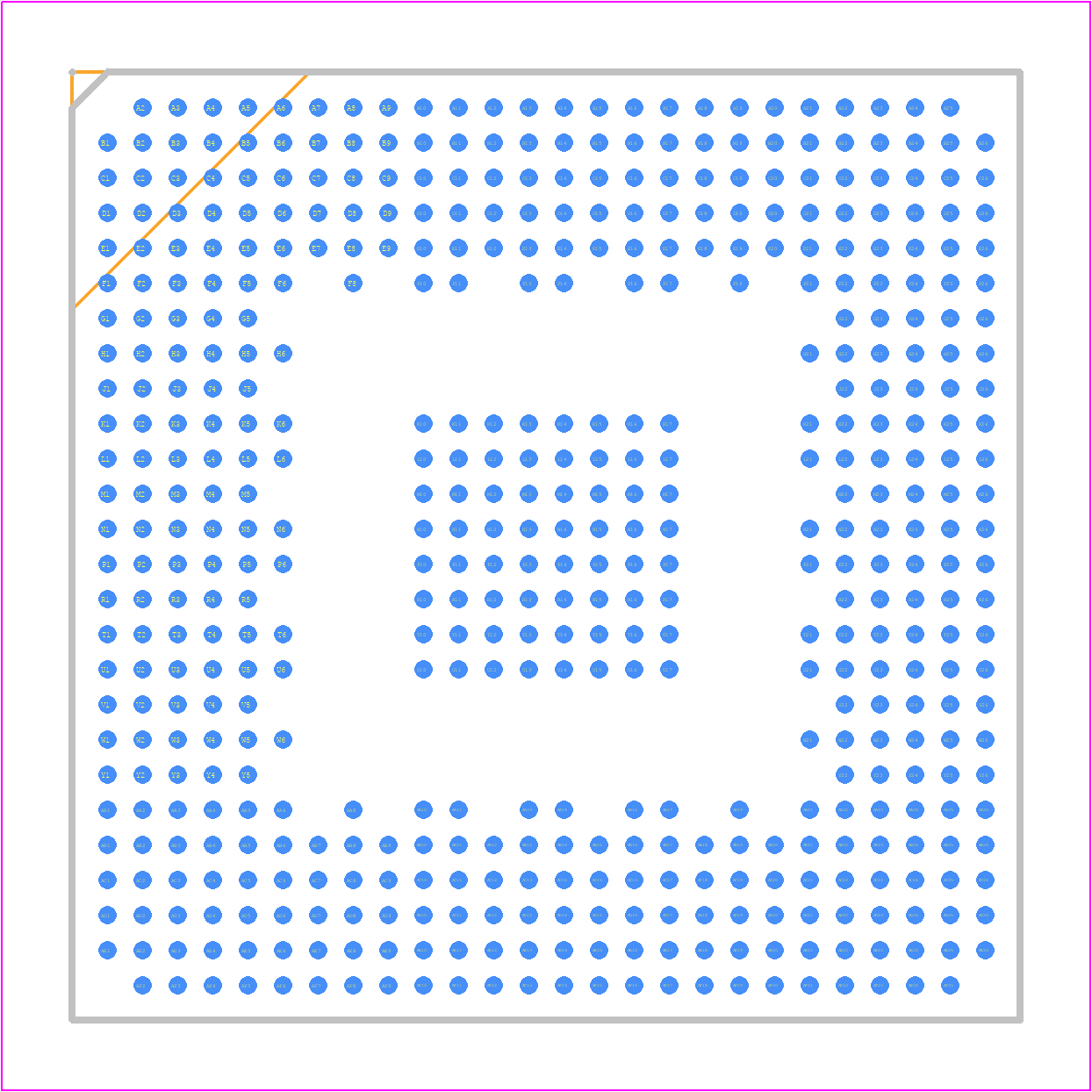

SPC5121YVY400B - NXP PCB footprint - BGA - BGA - bga 516 pin-+
click to zoom
3D Models
SPC5121YVY400B - NXP - 3D model - BGA - bga 516 pin-+
click to zoom

SPC5121YVY400B Details

  • Manufacturer Part Number:

    SPC5121YVY400B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    27 X 27 MM, 2.25 MM HEIGHT, 1 MM PITCH, ROHS COMPLIANT, PLASTIC, TFBGA-516

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B516

  • JESD-609 Code:

    e4

  • Length:

    27 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    516

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA516,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.55 mm

  • Speed:

    400 MHz

  • Supply Voltage-Max:

    1.47 V

  • Supply Voltage-Min:

    1.33 V

  • Supply Voltage-Nom:

    1.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    27 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC
