SPC564A80B4CFBY - STMicroelectronics

SPC564A80B4CFBY Details

• Manufacturer Part Number:

  SPC564A80B4CFBY

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

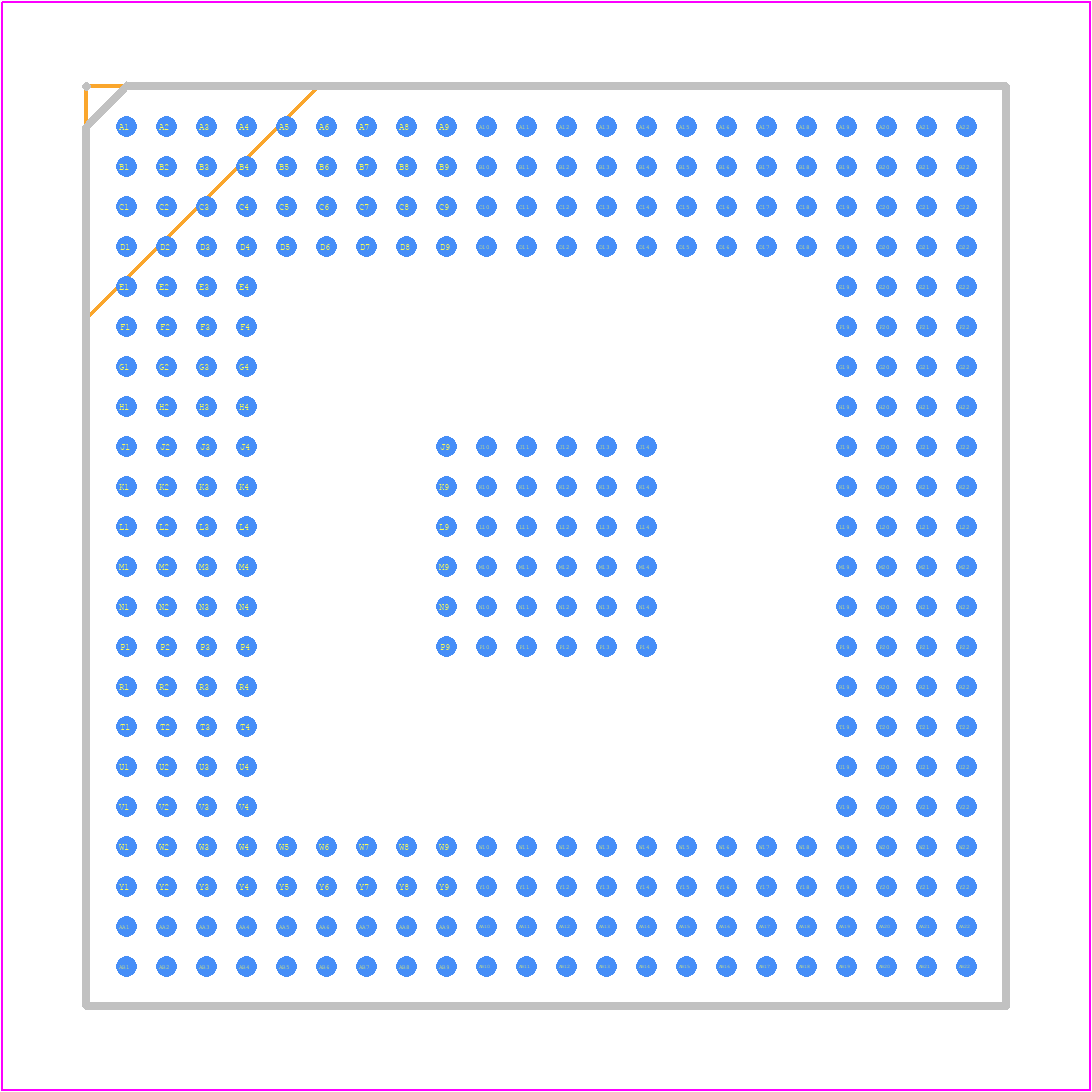

• Part Package Code:

  BGA

• Package Description:

  ROHS COMPLIANT, PLASTIC, BGA-324

• Pin Count:

  324

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7.27

• Has ADC:

  YES

• Address Bus Width:

  32

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PBGA-B324

• JESD-609 Code:

  e0

• Length:

  23 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  120

• Number of Terminals:

  324

• On Chip Program ROM Width:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA324,22X22,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• RAM (bytes):

  196608

• ROM (words):

  1048576

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.77 mm

• Speed:

  120 MHz

• Supply Current-Max:

  445 mA

• Supply Voltage-Max:

  1.32 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  TIN LEAD SILVER

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  23 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
