SPC564B74L7B9ECX - STMicroelectronics

Description: 32-bit MCU family built on the Power Architecture® for automotive body electronics applications

Download SPC564B74L7B9ECX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC564B74L7B9ECX - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

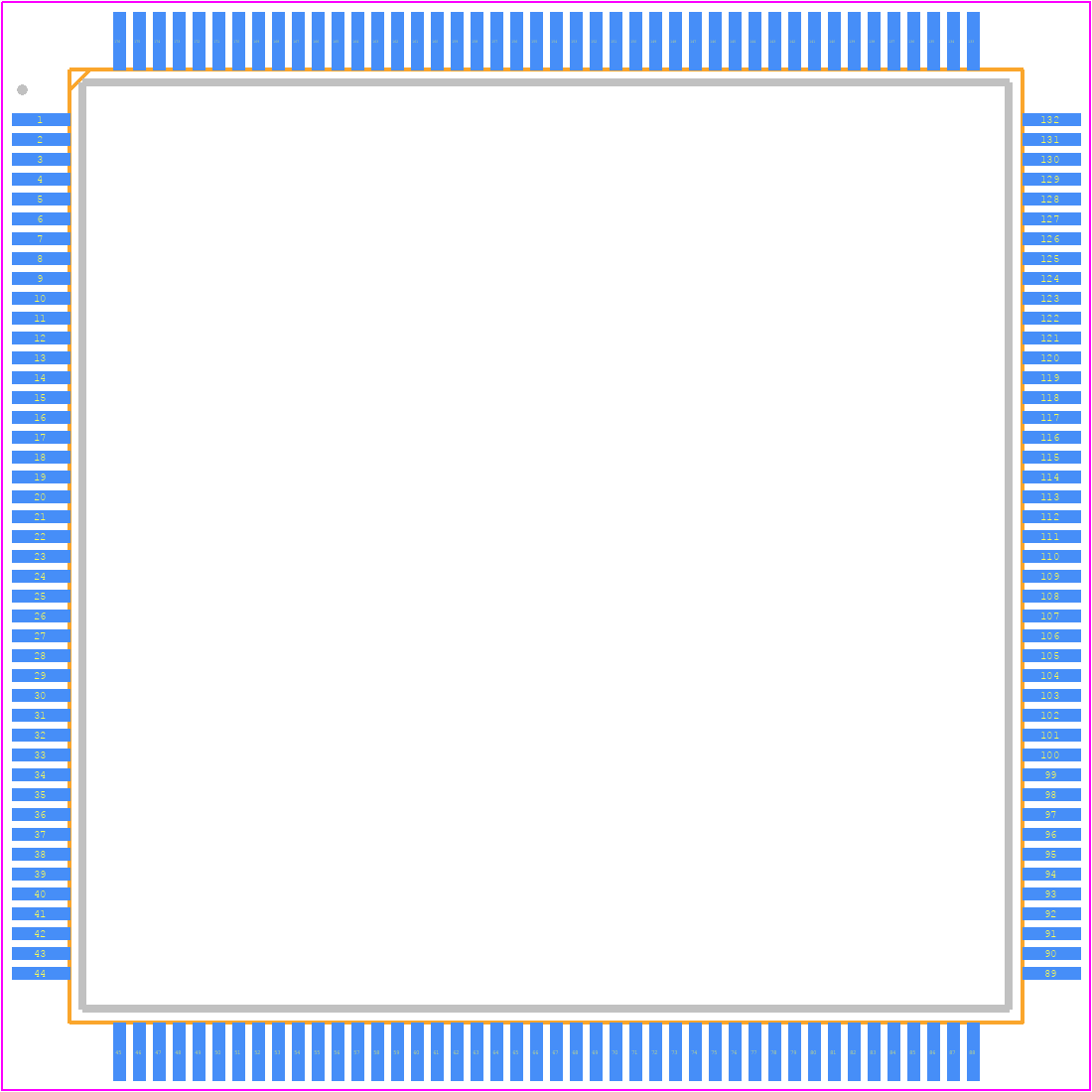

SPC564B74L7B9ECX - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP176 24 x 24 x 1.4
click to zoom
3D Models
SPC564B74L7B9ECX - STMicroelectronics - 3D model - Quad Flat Packages - LQFP176 24 x 24 x 1.4
click to zoom

SPC564B74L7B9ECX Details

  • Manufacturer Part Number:

    SPC564B74L7B9ECX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

SPC564B74L7B9ECX Frequently Asked Questions (FAQs)

  • The SPC564B74L7B9ECX can operate from -40°C to 125°C, but it's recommended to operate within -40°C to 105°C for optimal performance and reliability.
  • The clock settings can be configured using the Clock Generation Unit (CGU) module. You can refer to the device's reference manual and the STMicroelectronics' Clock Configuration Tool (CCT) for more information.
  • The maximum frequency of the CPU is 264 MHz, and the peripherals can operate at a maximum frequency of 132 MHz.
  • The SPC564B74L7B9ECX has a built-in Secure Boot mechanism that uses a combination of hardware and software components. You can refer to the device's reference manual and the STMicroelectronics' Secure Boot documentation for more information.
  • The power consumption of the SPC564B74L7B9ECX depends on the operating frequency, voltage, and peripherals used. You can refer to the device's datasheet and the STMicroelectronics' Power Consumption Calculator for more information.
