SPC56EC70L7C800Y - STMicroelectronics

Description: 32-bit MCU family built on the Power Architecture® for automotive body electronics applications

Download SPC56EC70L7C800Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC56EC70L7C800Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

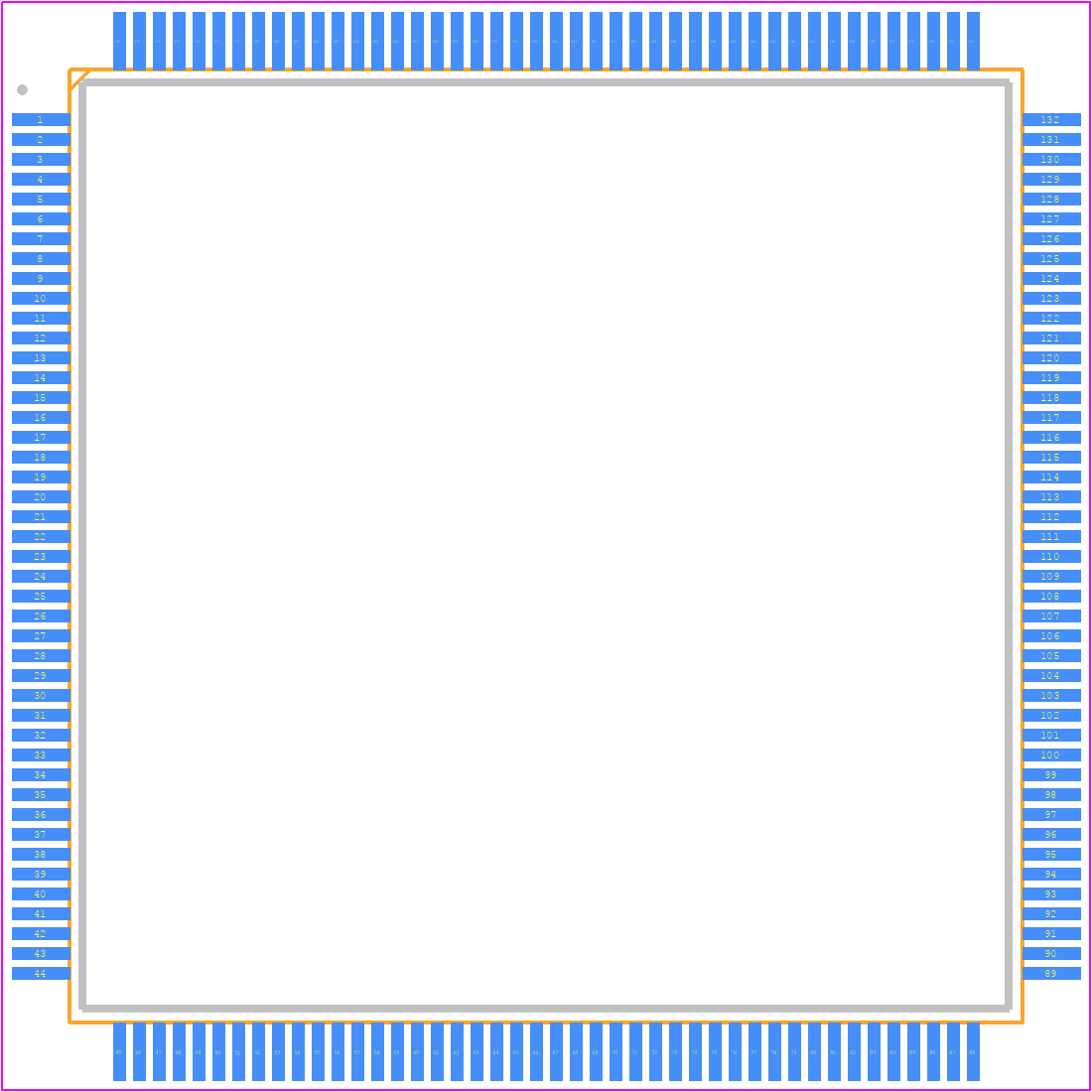

SPC56EC70L7C800Y - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP176 24 x 24 x 1.4
click to zoom
3D Models
SPC56EC70L7C800Y - STMicroelectronics - 3D model - Quad Flat Packages - LQFP176 24 x 24 x 1.4
click to zoom

SPC56EC70L7C800Y Details

  • Manufacturer Part Number:

    SPC56EC70L7C800Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

SPC56EC70L7C800Y Frequently Asked Questions (FAQs)

  • The SPC56EC70L7C800Y can operate in a temperature range of -40°C to 125°C, with a junction temperature of up to 150°C.
  • The clock settings for the SPC56EC70L7C800Y can be configured using the Clock Generation Unit (CGU) module, which allows for flexible clock configuration and management. Refer to the device's reference manual for detailed information on clock configuration.
  • The maximum frequency of the CPU is 120 MHz, while the peripherals can operate at a maximum frequency of 60 MHz.
  • The SPC56EC70L7C800Y has 3.2 MB of flash memory and 272 KB of SRAM.
  • The SPC56EC70L7C800Y has a range of communication interfaces, including 6x UART, 3x CAN, 2x LIN, 2x SPI, 1x I2C, 1x FlexRay, and 1x Ethernet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC56EC70L7C800Y Overview

Use the download button to access the SPC56EC70L7C800Y schematic symbol, PCB footprint, and 3D model.
