SPC56EC74B3C9ECY - STMicroelectronics

SPC56EC74B3C9ECY Details

• Manufacturer Part Number:

  SPC56EC74B3C9ECY

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7.27

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 5V NOMINAL SUPPLY, ALSO HAVING SHARED 19-CHANNELS OF ADC

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  E200Z4

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PBGA-B256

• Length:

  17 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  32

• Number of External Interrupts:

  24

• Number of I/O Lines:

  199

• Number of Serial I/Os:

  4

• Number of Terminals:

  256

• Number of Timers:

  12

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

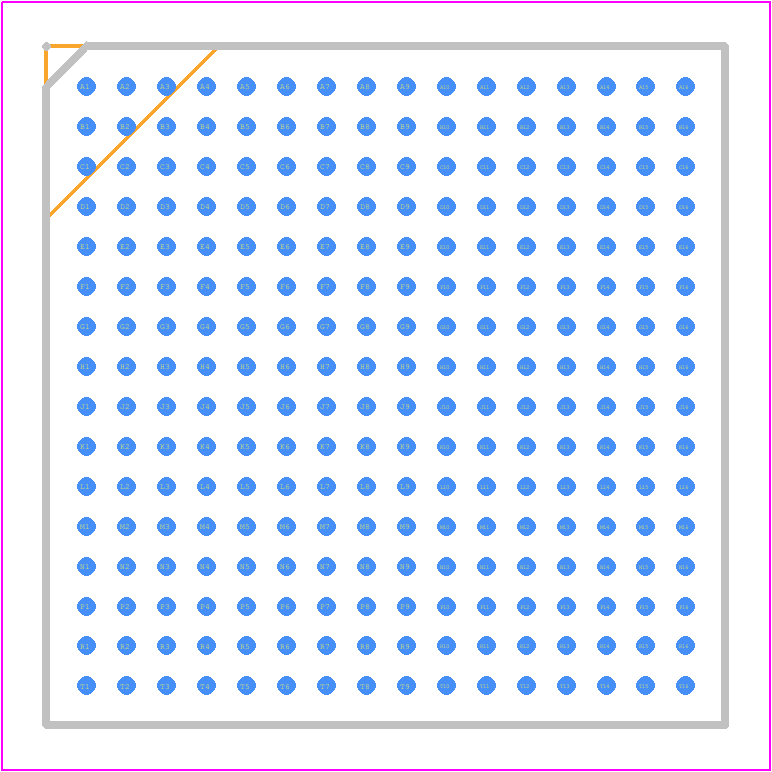

• Package Code:

  LBGA

• Package Equivalence Code:

  BGA256,16X16,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (bytes):

  262144

• ROM (words):

  3145728

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.7 mm

• Speed:

  120 MHz

• Supply Current-Max:

  300 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
