SPC570S50E3CEFAR - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications

Download SPC570S50E3CEFAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC570S50E3CEFAR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

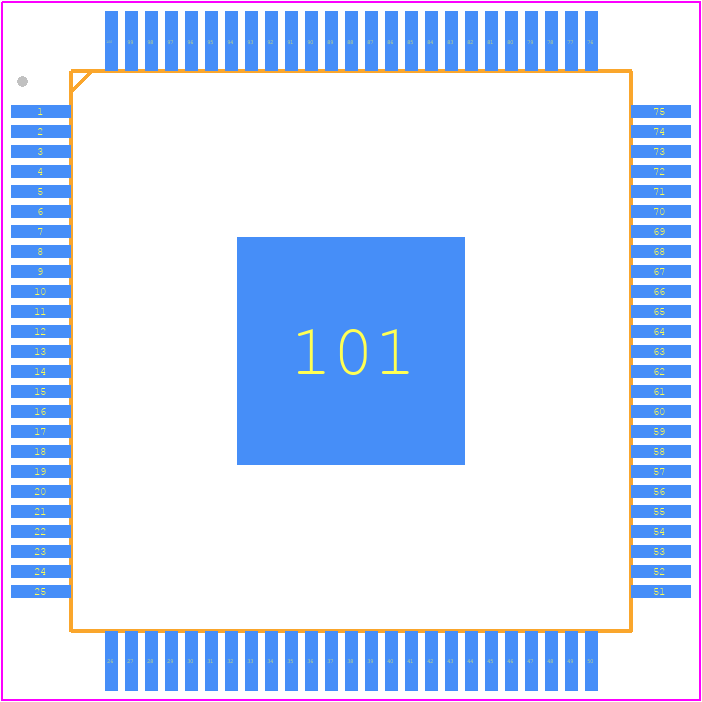

SPC570S50E3CEFAR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 100 14x14x1.0 mm
click to zoom
3D Models
SPC570S50E3CEFAR - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 100 14x14x1.0 mm
click to zoom

SPC570S50E3CEFAR Details

  • Manufacturer Part Number:

    SPC570S50E3CEFAR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    TQFP 100 14x14x1.0

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    40 MHz

  • DMA Channels:

    YES

  • Length:

    14 mm

  • Number of Terminals:

    100

  • PWM Channels:

    NO

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Speed:

    80 MHz

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC570S50E3CEFAR Frequently Asked Questions (FAQs)

  • The SPC570S50E3CEFAR can operate in a temperature range of -40°C to 125°C, making it suitable for automotive and industrial applications.
  • The clock settings for the SPC570S50E3CEFAR can be configured using the Clock Generation Unit (CGU) module. The CGU allows for flexible clock configuration, including clock source selection, clock frequency division, and clock output enable/disable.
  • The maximum frequency of the CPU is 160 MHz, while the peripherals can operate at a maximum frequency of 80 MHz.
  • The SPC570S50E3CEFAR has 4 MB of flash memory and 352 KB of SRAM.
  • The SPC570S50E3CEFAR has a range of communication interfaces, including 2x CAN FD, 2x LIN, 2x UART, 2x SPI, 1x I2C, and 1x Ethernet MAC.
