SPC5744BBK1AMKU6 - NXP

Description: Ultra-Reliable MPC574xB/C/G MCUs for Automotive and Industrial Control and Gateway

Download SPC5744BBK1AMKU6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC5744BBK1AMKU6 - NXP - PCB symbol
click to zoom

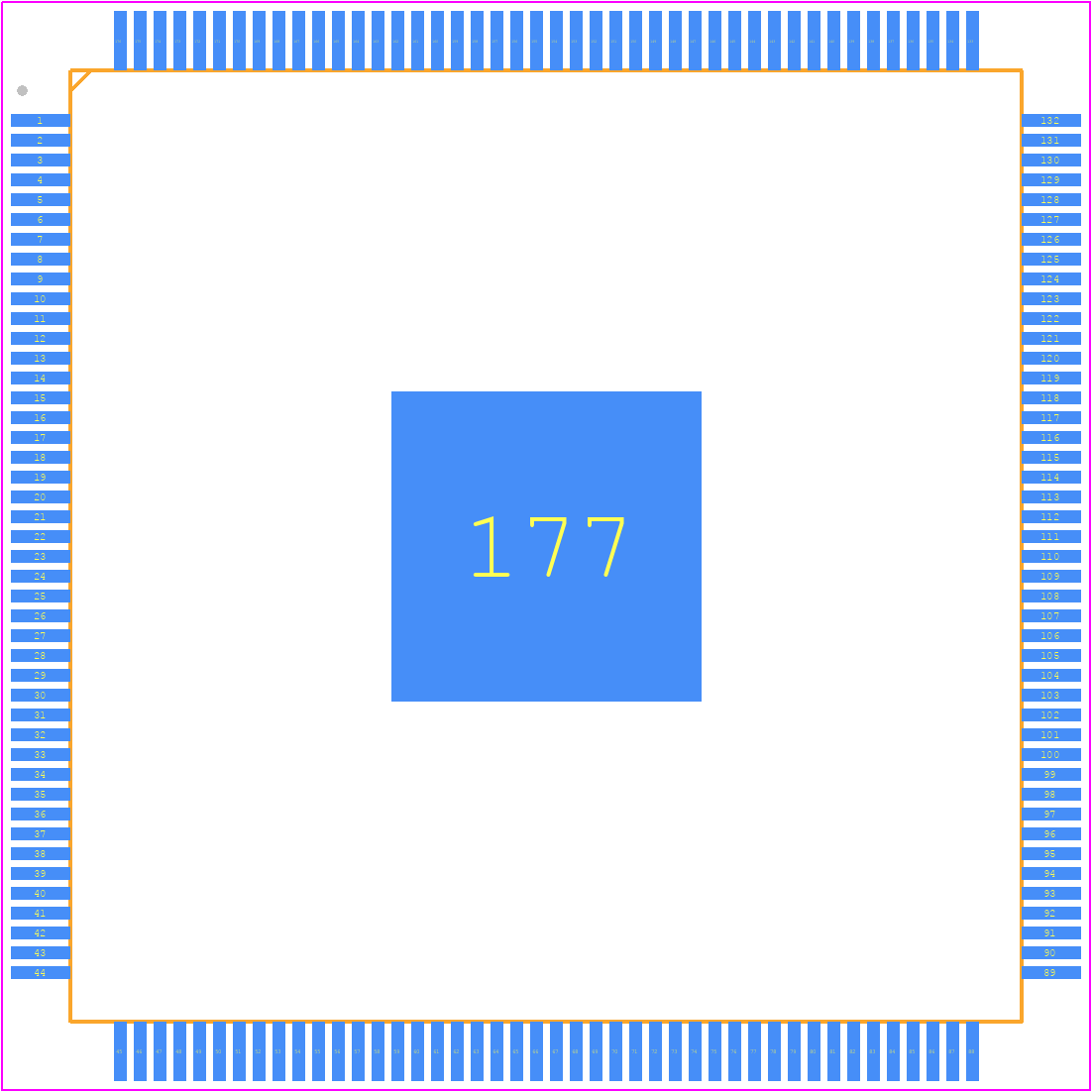

PCB Footprints
SPC5744BBK1AMKU6 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT766-7
click to zoom
3D Models
SPC5744BBK1AMKU6 - NXP - 3D model - Quad Flat Packages - SOT766-7
click to zoom

SPC5744BBK1AMKU6 Details

  • Manufacturer Part Number:

    SPC5744BBK1AMKU6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-176

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    32

  • Number of External Interrupts:

    1

  • Number of I/O Lines:

    129

  • Number of Terminals:

    176

  • Number of Timers:

    64

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLQFP

  • Package Equivalence Code:

    QFP176,1.0SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    196608

  • ROM (words):

    1572864

  • ROM Programmability:

    FLASH

  • Screening Level:

    ISO 26262

  • Seated Height-Max:

    1.6 mm

  • Speed:

    160 MHz

  • Supply Current-Max:

    264 mA

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC5744BBK1AMKU6 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide for the SPC5744BBK1AMKU6 in the 'SPC5744BBK1AMKU6 PCB Layout Guidelines' document, which can be found on the NXP website. This document provides detailed guidelines for designing a robust and reliable PCB layout for the device.
  • The clock settings for the SPC5744BBK1AMKU6 can be configured using the Clock Domain Controller (CDC) module. The CDC module allows you to configure the clock sources, clock frequencies, and clock dividers for the device. You can refer to the 'SPC5744BBK1AMKU6 Reference Manual' for more information on configuring the clock settings.
  • The maximum operating temperature range for the SPC5744BBK1AMKU6 is -40°C to 125°C. However, it's recommended to operate the device within the recommended operating temperature range of -40°C to 105°C for optimal performance and reliability.
  • The SPC5744BBK1AMKU6 supports secure boot through the Boot Assist Module (BAM). The BAM module provides a secure boot mechanism that ensures the authenticity and integrity of the boot code. You can refer to the 'SPC5744BBK1AMKU6 Reference Manual' and the 'SPC5744BBK1AMKU6 Secure Boot Guide' for more information on implementing secure boot on the device.
  • The maximum current consumption of the SPC5744BBK1AMKU6 depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the maximum current consumption is around 1.2A at 1.2V and 264MHz. However, it's recommended to refer to the 'SPC5744BBK1AMKU6 Datasheet' and perform power analysis to determine the actual current consumption for your specific application.
