SPC5748GHK0AMKU6 - NXP

SPC5748GHK0AMKU6 Details

• Manufacturer Part Number:

  SPC5748GHK0AMKU6

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

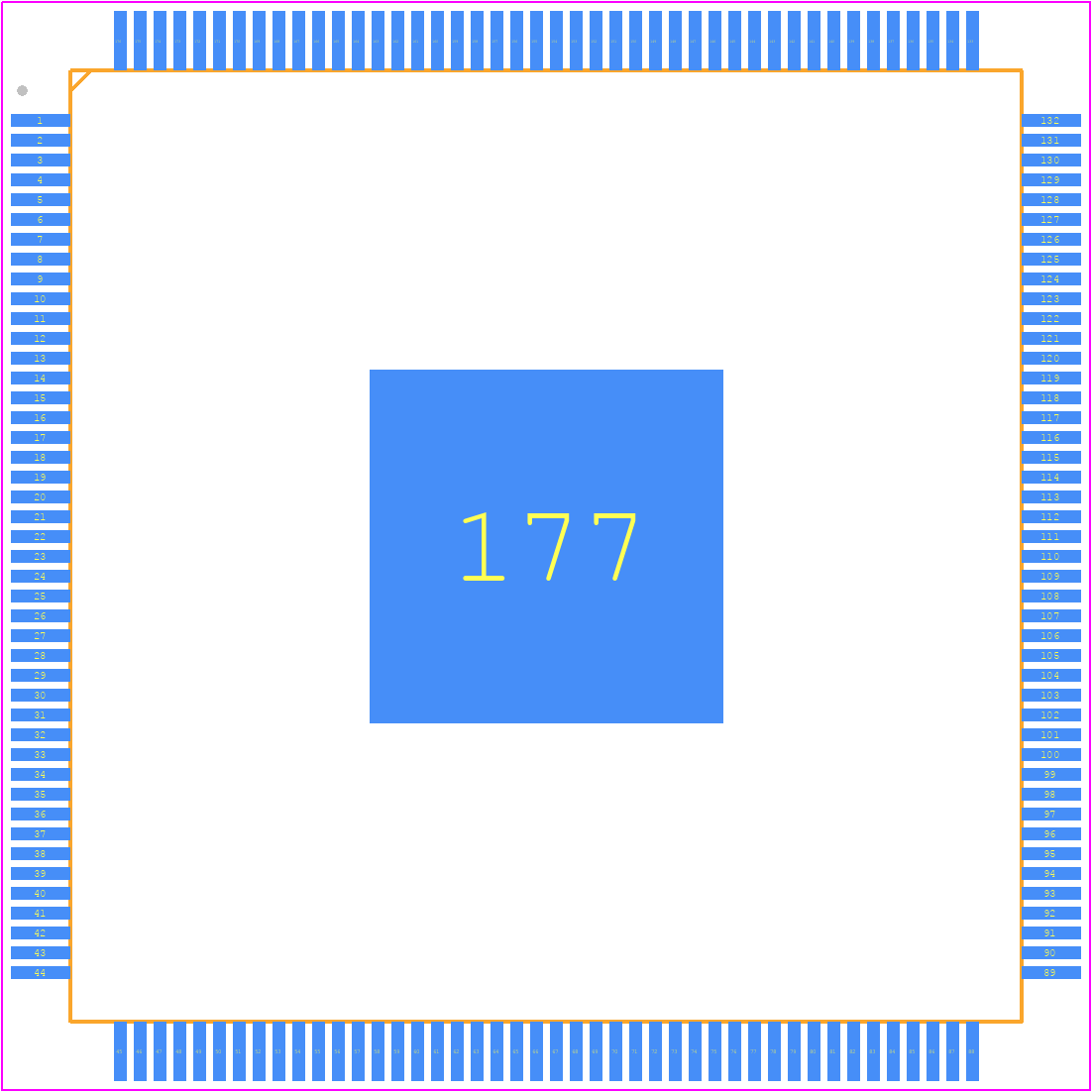

• Package Description:

  LQFP-176

• Country Of Origin:

  Mainland China, Malaysia

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  12 Weeks

• Date Of Intro:

  2018-03-16

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  10

• Has ADC:

  YES

• Additional Feature:

  EEPROM SUP : 32KB-192KB EMULATED, ADC CH(INT AND EXT) BASED ON PACKAGE, SUPPORT CAN FD, 2ND ETHERNET

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  E200Z4

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G176

• JESD-609 Code:

  e3

• Length:

  24 mm

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  32

• Number of I/O Lines:

  96

• Number of Terminals:

  176

• Number of Timers:

  115

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  786432

• ROM (words):

  6291456

• ROM Programmability:

  FLASH

• Screening Level:

  ISO 26262

• Seated Height-Max:

  1.6 mm

• Speed:

  160 MHz

• Supply Voltage-Max:

  1.32 V

• Supply Voltage-Min:

  1.08 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
