SPC5748GK1MKU6R - NXP

Description: 32-bit Microcontrollers - MCU SPC5748GK1MKU6/HLQFP176///REEL 13 Q2 DP

Download SPC5748GK1MKU6R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC5748GK1MKU6R - NXP - PCB symbol
click to zoom
PCB Footprints

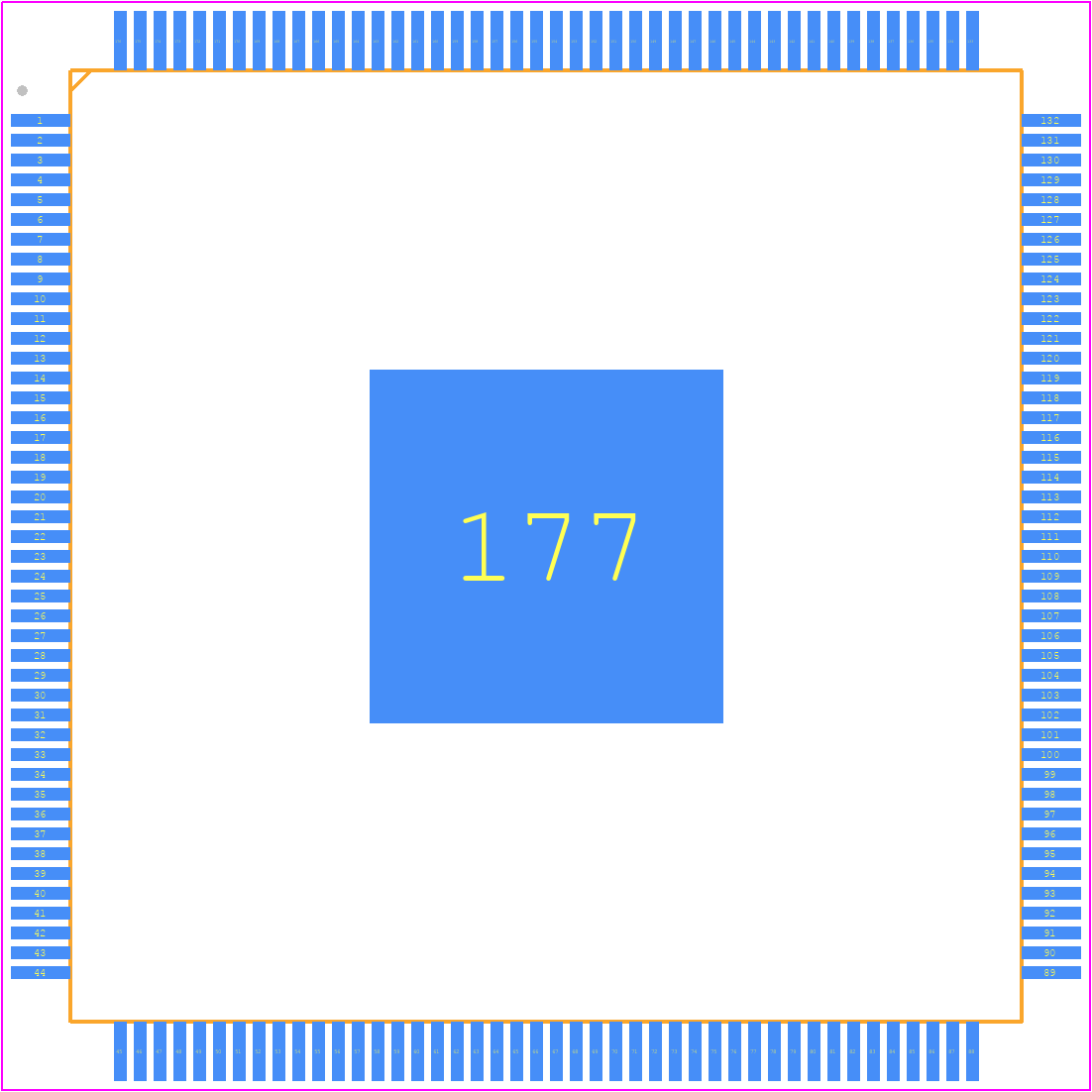

SPC5748GK1MKU6R - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 176-LQFP Exposed Pad
click to zoom
3D Models
SPC5748GK1MKU6R - NXP - 3D model - Quad Flat Packages - 176-LQFP Exposed Pad
click to zoom

SPC5748GK1MKU6R Details

  • Manufacturer Part Number:

    SPC5748GK1MKU6R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-176

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Has ADC:

    YES

  • Additional Feature:

    EEPROM SUP : 32KB-192KB EMULATED, ADC CH(INT AND EXT) BASED ON PACKAGE

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    32

  • Number of I/O Lines:

    96

  • Number of Terminals:

    176

  • Number of Timers:

    115

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    786432

  • ROM (words):

    6291456

  • ROM Programmability:

    FLASH

  • Screening Level:

    ISO 26262

  • Seated Height-Max:

    1.6 mm

  • Speed:

    160 MHz

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.08 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
