SPC574K72E5C6FAY - STMicroelectronics

Description: 32-bit Power Architecture® based MCU for automotive applications

Download SPC574K72E5C6FAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC574K72E5C6FAY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

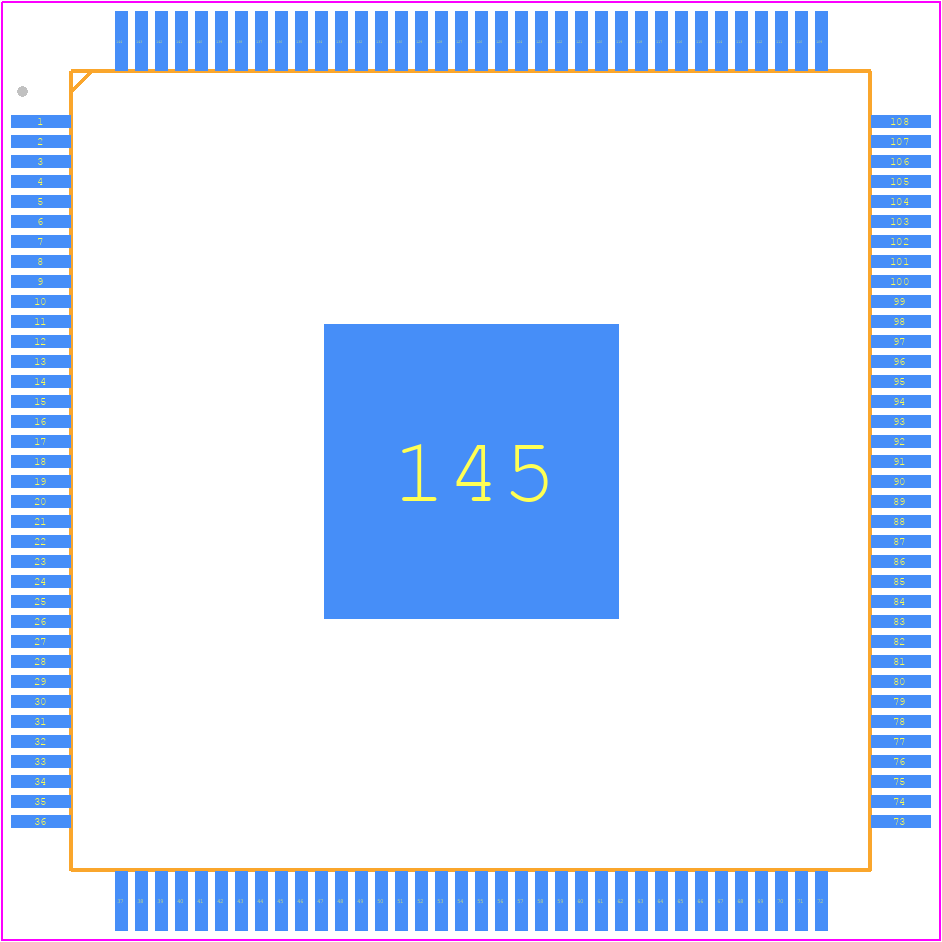

SPC574K72E5C6FAY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eTQFP144
click to zoom
3D Models
SPC574K72E5C6FAY - STMicroelectronics - 3D model - Quad Flat Packages - eTQFP144
click to zoom

SPC574K72E5C6FAY Details

  • Manufacturer Part Number:

    SPC574K72E5C6FAY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    TQFP 144 20x20x1.0 1.0 ExpadDown

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC574K72E5C6FAY Frequently Asked Questions (FAQs)

  • The SPC574K72E5C6FAY can operate in a temperature range of -40°C to 125°C.
  • The clock settings can be configured using the Clock Management Unit (CMU) module. Refer to the device's reference manual for detailed instructions.
  • The maximum frequency of the CPU is 200 MHz.
  • The SPC574K72E5C6FAY has 4 MB of flash memory.
  • Yes, the SPC574K72E5C6FAY is an automotive-grade microcontroller, designed for use in automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC574K72E5C6FAY Overview

Use the download button to access the SPC574K72E5C6FAY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC57, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
