SPC574K72E7C6FAY - STMicroelectronics

Description: 32-bit Power Architecture® based MCU for automotive applications

Download SPC574K72E7C6FAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC574K72E7C6FAY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

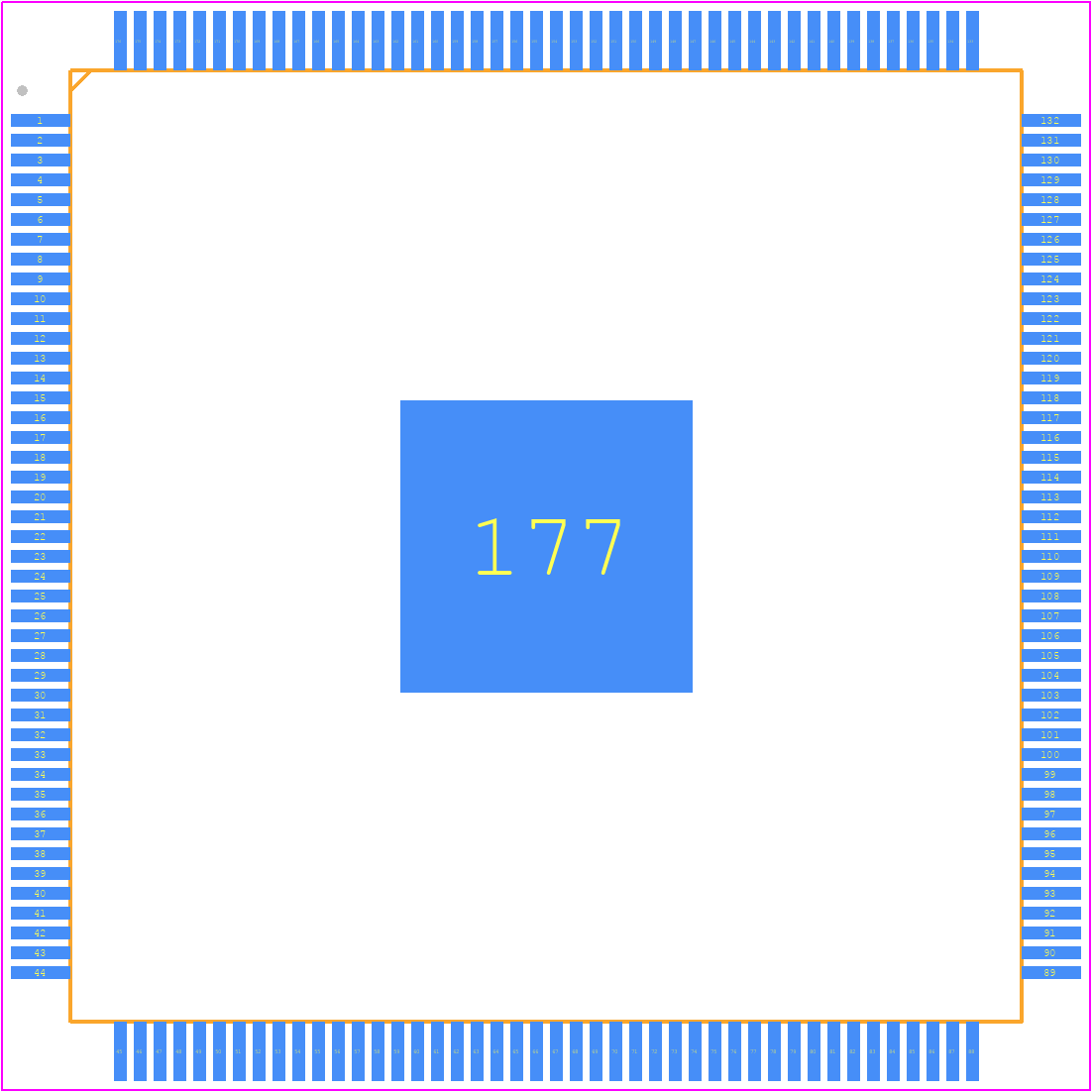

SPC574K72E7C6FAY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP176
click to zoom
3D Models
SPC574K72E7C6FAY - STMicroelectronics - 3D model - Quad Flat Packages - LQFP176
click to zoom

SPC574K72E7C6FAY Details

  • Manufacturer Part Number:

    SPC574K72E7C6FAY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC574K72E7C6FAY Frequently Asked Questions (FAQs)

  • The SPC574K72E7C6FAY can operate in a temperature range of -40°C to 125°C, with a junction temperature of up to 150°C.
  • The clock settings for the SPC574K72E7C6FAY can be configured using the Clock Management Unit (CMU) module. The CMU allows you to select the clock source, configure the clock frequency, and enable/disable clock outputs. You can refer to the device's reference manual for more information on clock configuration.
  • The maximum frequency of the CPU is 160 MHz, and the maximum frequency of the peripherals is 80 MHz.
  • The SPC574K72E7C6FAY has 4MB of flash memory and 384KB of SRAM.
  • The SPC574K72E7C6FAY has a range of communication interfaces, including 2x FlexCAN, 2x LIN, 2x UART, 2x SPI, 1x I2C, 1x Ethernet, and 1x FlexRay.
