SPC574S60E3CE0AR - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive Chassis and Safety Applications

Download SPC574S60E3CE0AR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC574S60E3CE0AR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

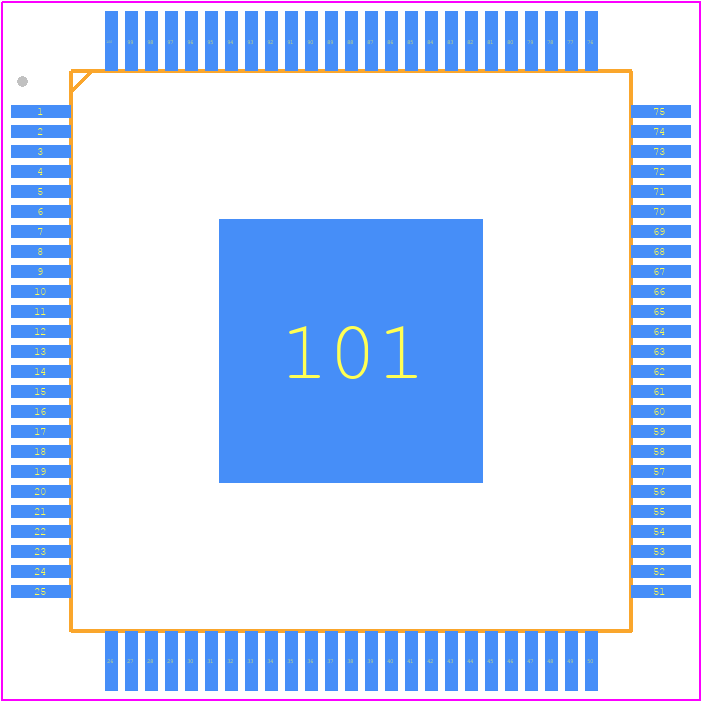

SPC574S60E3CE0AR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eTQFP100 14mm x 14mm x 1.2mm
click to zoom
3D Models
SPC574S60E3CE0AR - STMicroelectronics - 3D model - Quad Flat Packages - eTQFP100 14mm x 14mm x 1.2mm
click to zoom

SPC574S60E3CE0AR Details

  • Manufacturer Part Number:

    SPC574S60E3CE0AR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Has ADC:

    YES

  • Address Bus Width:

    32

  • Bit Size:

    32

  • Clock Frequency-Max:

    40 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Length:

    14 mm

  • Number of I/O Lines:

    79

  • Number of Terminals:

    100

  • PWM Channels:

    YES

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Speed:

    140 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC574S60E3CE0AR Frequently Asked Questions (FAQs)

  • The SPC574S60E3CE0AR can operate from -40°C to 125°C, with a junction temperature range of -40°C to 150°C.
  • The clock settings can be configured using the Clock Generation Unit (CGU) module, which allows for flexible clock tree configuration. Refer to the device's reference manual for detailed information on clock configuration.
  • The maximum frequency of the CPU is 160 MHz, while the peripherals can operate at a maximum frequency of 80 MHz.
  • The SPC574S60E3CE0AR has 4MB of flash memory and 384KB of SRAM.
  • The SPC574S60E3CE0AR has a range of communication interfaces, including 2x FlexCAN, 2x LIN, 2x UART, 2x SPI, 1x I2C, 1x Ethernet, and 1x FlexRay.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC574S60E3CE0AR Overview

Use the download button to access the SPC574S60E3CE0AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC57, or try a keyword search, such as Microcontrollers
