SPC5777MK0MVA8 - NXP

SPC5777MK0MVA8 Details

• Manufacturer Part Number:

  SPC5777MK0MVA8

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

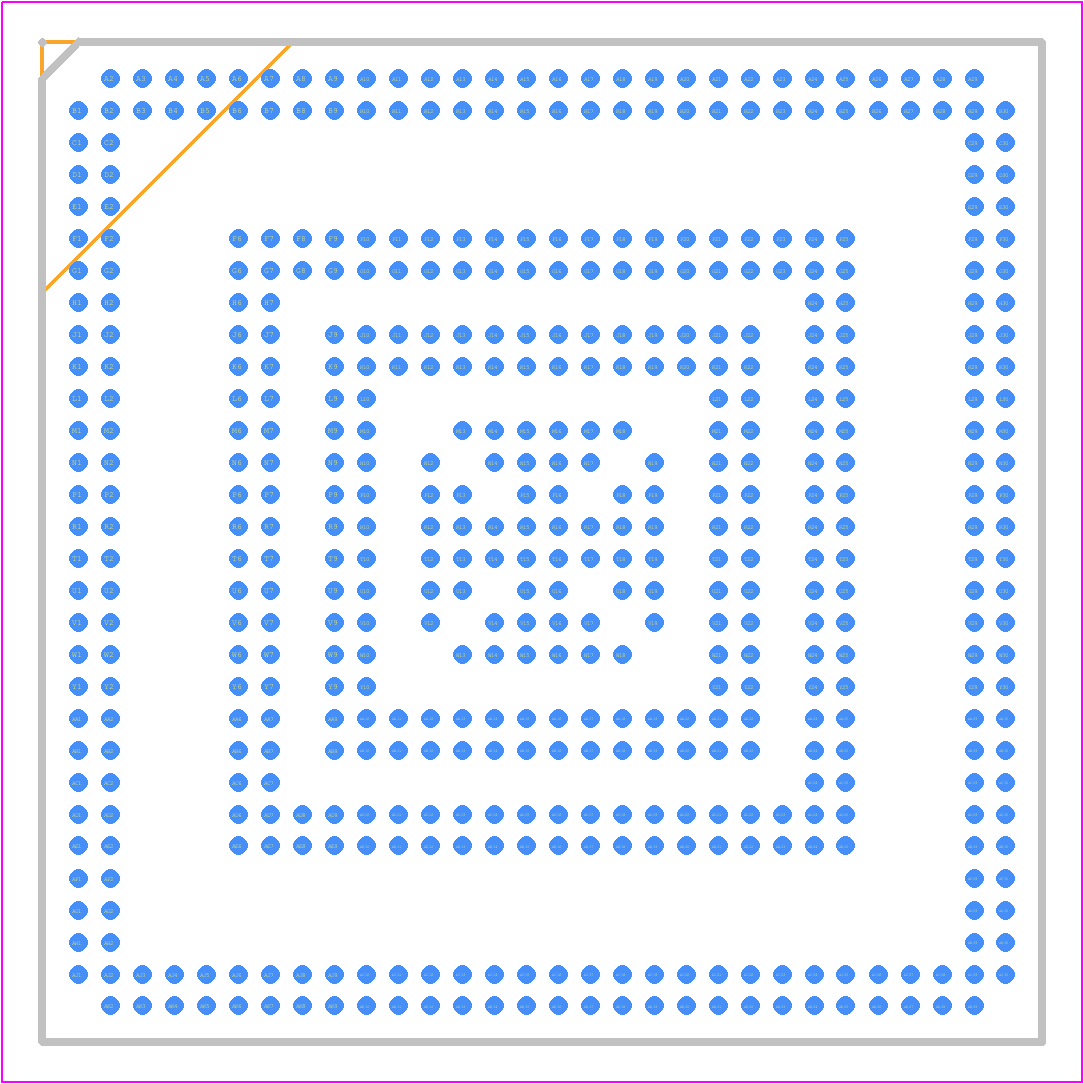

  TEBGA-512

• Country Of Origin:

  Malaysia

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  5

• Has ADC:

  YES

• Additional Feature:

  INCLUDES GTM104, ETHERNET SUPPORT, 74KB(ADDITIONAL RAM)

• Address Bus Width:

  32

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PBGA-B512

• JESD-609 Code:

  e2

• Length:

  25 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  512

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  413696

• ROM (words):

  8388608

• ROM Programmability:

  FLASH

• Screening Level:

  ISO 26262

• Seated Height-Max:

  2.36 mm

• Speed:

  300 MHz

• Supply Voltage-Max:

  1.38 V

• Supply Voltage-Min:

  1.19 V

• Supply Voltage-Nom:

  1.325 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Gold (Ni/Au)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  25 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
