SPC582B50E3CD00X - STMicroelectronics

Description: e200z2 series Microcontroller IC 32-Bit Single-Core 80MHz 512KB (512K x 8) FLASH 100-eTQFP (14x14)

Download SPC582B50E3CD00X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC582B50E3CD00X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

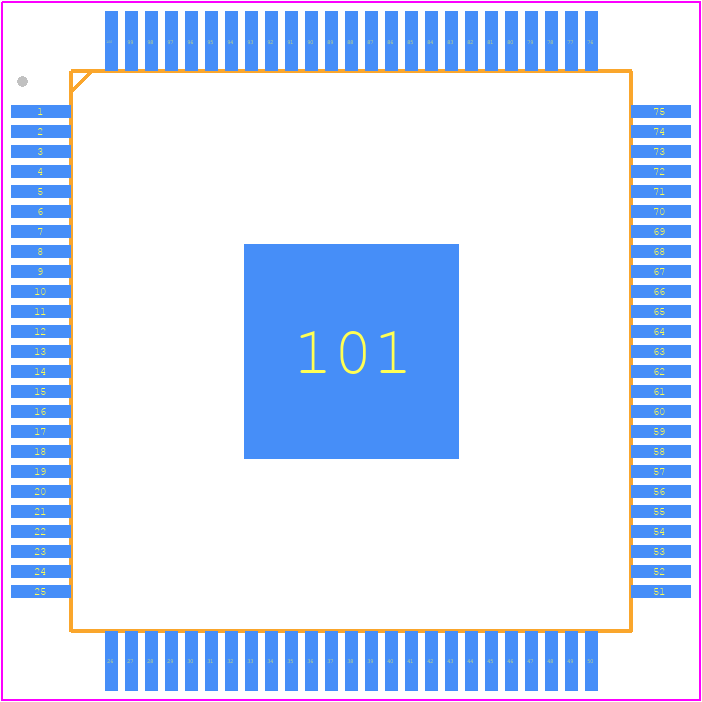

SPC582B50E3CD00X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eTQFP100 (14 x 14 x 1.0 mm)_2022
click to zoom
3D Models
SPC582B50E3CD00X - STMicroelectronics - 3D model - Quad Flat Packages - eTQFP100 (14 x 14 x 1.0 mm)_2022
click to zoom

SPC582B50E3CD00X Details

  • Manufacturer Part Number:

    SPC582B50E3CD00X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC582B50E3CD00X Frequently Asked Questions (FAQs)

  • The SPC582B50E3CD00X can operate in a temperature range of -40°C to 125°C.
  • The clock settings can be configured using the Clock Controller (CLK) module, which allows for selection of clock sources, clock dividers, and clock outputs. Refer to the device's reference manual for detailed configuration information.
  • The CPU frequency can be up to 400 MHz, while the peripheral frequencies vary depending on the specific peripheral, but can be up to 200 MHz.
  • The SPC582B50E3CD00X has a built-in Secure Boot mechanism that uses a combination of hardware and software to ensure the authenticity and integrity of the boot process. Refer to the device's security manual for detailed implementation information.
  • The power consumption of the SPC582B50E3CD00X varies depending on the operating mode, frequency, and peripheral usage. Refer to the device's datasheet for detailed power consumption characteristics and estimates.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC582B50E3CD00X Overview

Use the download button to access the SPC582B50E3CD00X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC58, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
