SPC582B54E3L000X - STMicroelectronics

Description: SPC58 2B Line - 32 bit Power Architecture automotive MCU Single core 80Mhz, 1MByte Flash, ASIL-B

Download SPC582B54E3L000X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC582B54E3L000X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

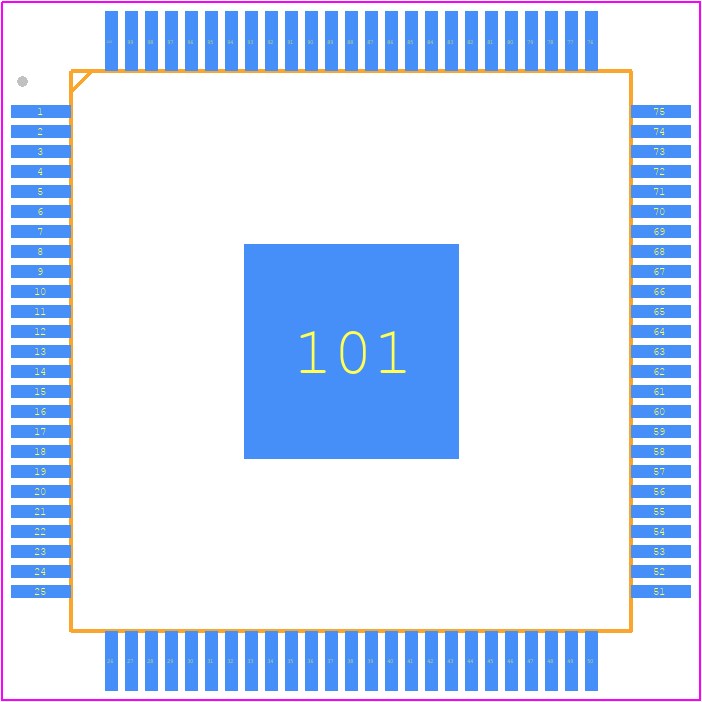

SPC582B54E3L000X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eTQFP100 (14 x 14 x 1.0 mm)_2022
click to zoom
3D Models
SPC582B54E3L000X - STMicroelectronics - 3D model - Quad Flat Packages - eTQFP100 (14 x 14 x 1.0 mm)_2022
click to zoom

SPC582B54E3L000X Details

  • Manufacturer Part Number:

    SPC582B54E3L000X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC582B54E3L000X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout guide in the SPC582B54E3L000X application note (AN5333) which includes guidelines for component placement, routing, and thermal management.
  • To optimize power consumption, use the low-power modes (LP modes) provided by the microcontroller, such as Wait Mode, Stop Mode, and Deep Sleep Mode. Additionally, use the Power Management Unit (PMU) to control the power domains and clock frequencies.
  • The SPC582B54E3L000X has an operating temperature range of -40°C to 125°C, but it's recommended to operate within the -20°C to 105°C range for optimal performance and reliability.
  • To ensure EMC, follow the guidelines provided in the SPC582B54E3L000X application note (AN5333) for PCB layout, component selection, and shielding. Additionally, use the built-in EMC features such as spread spectrum clocking and electromagnetic emission reduction.
  • The recommended oscillator configuration for the SPC582B54E3L000X is to use a 16 MHz external crystal oscillator with a 1% tolerance, and to enable the internal oscillator trimming to ensure accurate clock frequencies.
