SPC584B70E3NDC0Y - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Download SPC584B70E3NDC0Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC584B70E3NDC0Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

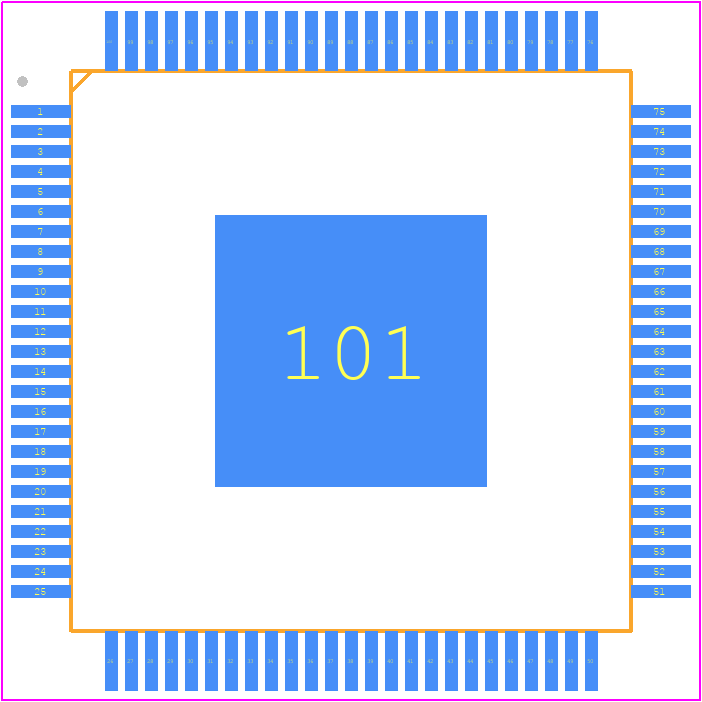

SPC584B70E3NDC0Y - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 100 14x14x1.0mm-ren1
click to zoom
3D Models
SPC584B70E3NDC0Y - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 100 14x14x1.0mm-ren1
click to zoom

SPC584B70E3NDC0Y Details

  • Manufacturer Part Number:

    SPC584B70E3NDC0Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-100

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of Serial I/Os:

    8

  • Number of Terminals:

    100

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • RAM (bytes):

    131072

  • ROM (words):

    2097152

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Speed:

    120 MHz

  • Supply Current-Max:

    55 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC584B70E3NDC0Y Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a reference design and layout guidelines in the SPC58xB/C microcontroller family's PCB layout guidelines document (AN5163). Additionally, thermal management recommendations can be found in the device's thermal management application note (AN4861).
  • STMicroelectronics provides a secure boot and firmware encryption solution through its SPC58xB/C microcontroller family's secure boot and firmware encryption application note (AN5423). This document outlines the steps to implement secure boot and firmware encryption using the device's built-in security features.
  • The SPC584B70E3NDC0Y has a 4MB internal flash memory. However, it's essential to consider the endurance and data retention limitations of the flash memory. The device's datasheet and flash programming manual (PM0217) provide guidelines on flash memory usage, including programming and erasing cycles, data retention, and temperature effects.
  • STMicroelectronics provides power consumption and optimization guidelines in the SPC58xB/C microcontroller family's power consumption and optimization application note (AN4862). This document outlines techniques for reducing power consumption, including clock gating, voltage scaling, and sleep modes.
  • STMicroelectronics recommends using the SPC5-Studio development environment, which includes a code generator, compiler, and debugger. Additionally, the company offers a range of debugging and programming tools, including the SPC58-Discovery board and the SPC5-LINK debugger.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC584B70E3NDC0Y Overview

Use the download button to access the SPC584B70E3NDC0Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC58, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
