SPC584B70E3NMC0X - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Download SPC584B70E3NMC0X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC584B70E3NMC0X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

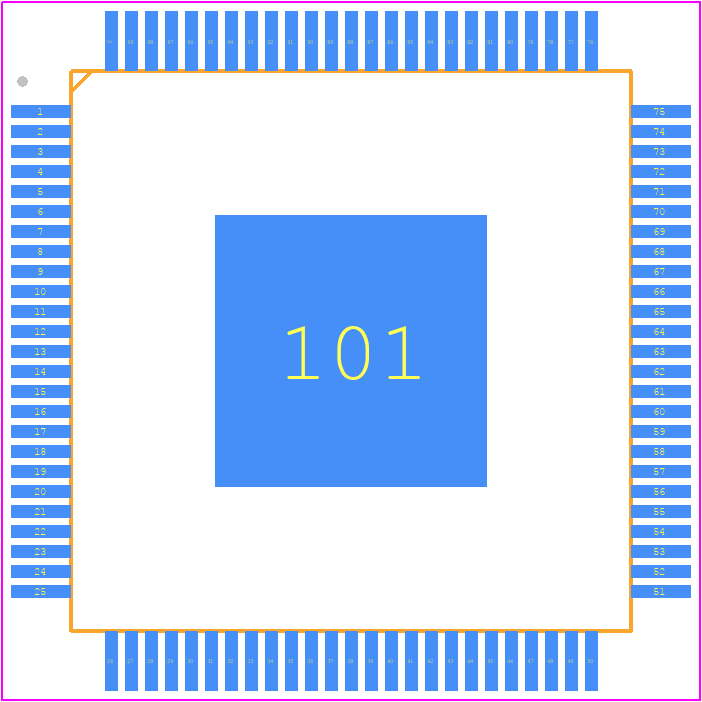

SPC584B70E3NMC0X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 100 14x14x1.0mm-ren1
click to zoom
3D Models
SPC584B70E3NMC0X - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 100 14x14x1.0mm-ren1
click to zoom

SPC584B70E3NMC0X Details

  • Manufacturer Part Number:

    SPC584B70E3NMC0X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-100

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of Serial I/Os:

    8

  • Number of Terminals:

    100

  • Number of Timers:

    9

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • RAM (bytes):

    131072

  • ROM (words):

    2097152

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Speed:

    120 MHz

  • Supply Current-Max:

    55 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC584B70E3NMC0X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a dedicated application note (AN5165) that provides guidelines for PCB layout and thermal management for the SPC58xB/C microcontrollers, including the SPC584B70E3NMC0X. It's essential to follow these guidelines to ensure optimal performance and reliability.
  • The SPC584B70E3NMC0X has a complex clock system with multiple PLLs. STMicroelectronics provides a clock configuration tool (SPC5-Clock) that helps engineers configure the clock system and PLLs for optimal performance and power consumption. Additionally, the device's user manual and application notes provide detailed information on clock configuration and optimization.
  • The SPC584B70E3NMC0X has a 4MB flash memory with specific limitations and constraints, such as erase cycles, write endurance, and sector organization. Engineers should consult the device's user manual and application notes to understand these limitations and optimize flash memory usage. Additionally, STMicroelectronics provides a flash programming tool (SPC5-Flash) that helps optimize flash memory usage and reduce wear-out.
  • The SPC584B70E3NMC0X has built-in functional safety and security features, such as ECC, CRC, and cryptographic accelerators. STMicroelectronics provides a safety manual and security guidelines that explain how to implement these features in automotive and industrial applications. Additionally, engineers can consult the device's user manual and application notes for more information on safety and security implementation.
  • STMicroelectronics provides a range of debugging and testing tools, such as the SPC5-STUDIO development environment, the SPC5-LINK debugger, and the Lauterbach TRACE32 debugger. Engineers should consult the device's user manual and application notes to understand the recommended debugging and testing methodologies and tools for the SPC584B70E3NMC0X.
