SPC584C70E3FMC1X - STMicroelectronics

Description: SPC58 C Line - 32 bit Power Architecture automotive MCU Dual z4 cores 180 MHz, 4 MBytes Flash, HSM, ASIL-B

Download SPC584C70E3FMC1X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC584C70E3FMC1X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

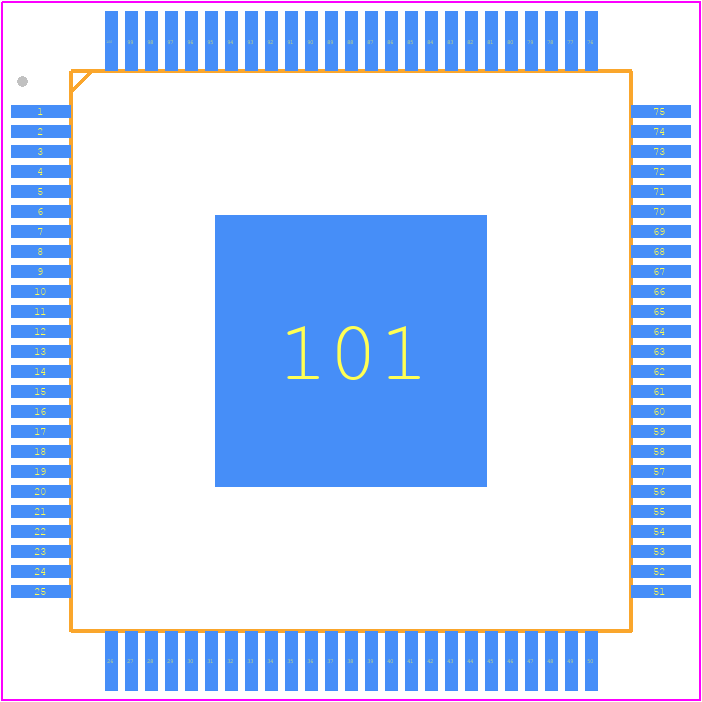

SPC584C70E3FMC1X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eTQFP100 (14 x 14 x 1.0 mm)
click to zoom
3D Models
SPC584C70E3FMC1X - STMicroelectronics - 3D model - Quad Flat Packages - eTQFP100 (14 x 14 x 1.0 mm)
click to zoom

SPC584C70E3FMC1X Details

  • Manufacturer Part Number:

    SPC584C70E3FMC1X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-100

  • Country Of Origin:

    France, Italy

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of I/O Lines:

    78

  • Number of Serial I/Os:

    18

  • Number of Terminals:

    100

  • Number of Timers:

    12

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    262144

  • ROM (words):

    2097152

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Speed:

    160 MHz

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC584C70E3FMC1X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a reference design and layout guidelines in the SPC58XCx Microcontroller Family Reference Manual (RM0444) and the SPC58XCx Microcontroller Family PCB Layout Guidelines (AN5163). Additionally, thermal management recommendations can be found in the SPC58XCx Microcontroller Family Thermal Management (AN5164).
  • The clock system and PLL configuration can be complex, but STMicroelectronics provides a Clock Configuration Tool (CCT) that helps to generate the optimal clock configuration for the SPC584C70E3FMC1X. The tool can be found on the STMicroelectronics website.
  • The Flash memory has limitations on the number of erase cycles, programming cycles, and data retention. To optimize its usage, it is recommended to use the Flash memory programming and erase functions provided by STMicroelectronics, and to follow the guidelines in the SPC58XCx Microcontroller Family Flash Programming and Erase (AN5165).
  • STMicroelectronics provides a Secure Boot and Secure Firmware Update solution for the SPC584C70E3FMC1X, which includes a set of libraries and tools. The solution is based on the STM32CubeMX software tool and the SPC58XCx Microcontroller Family Secure Boot and Secure Firmware Update (AN5166).
  • The package options differ in terms of pin count, package size, and thermal performance. The choice of package depends on the specific requirements of the application, such as pin count, thermal dissipation, and board layout constraints. STMicroelectronics provides a Package Selector tool on their website to help choose the right package for the application.
