SPC58EC74E3FMC1X - STMicroelectronics

Description: SPC58 C Line - 32 bit Power Architecture automotive MCU Dual z4 cores 180 MHz, 4 MBytes Flash, HSM, ASIL-B

Download SPC58EC74E3FMC1X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58EC74E3FMC1X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

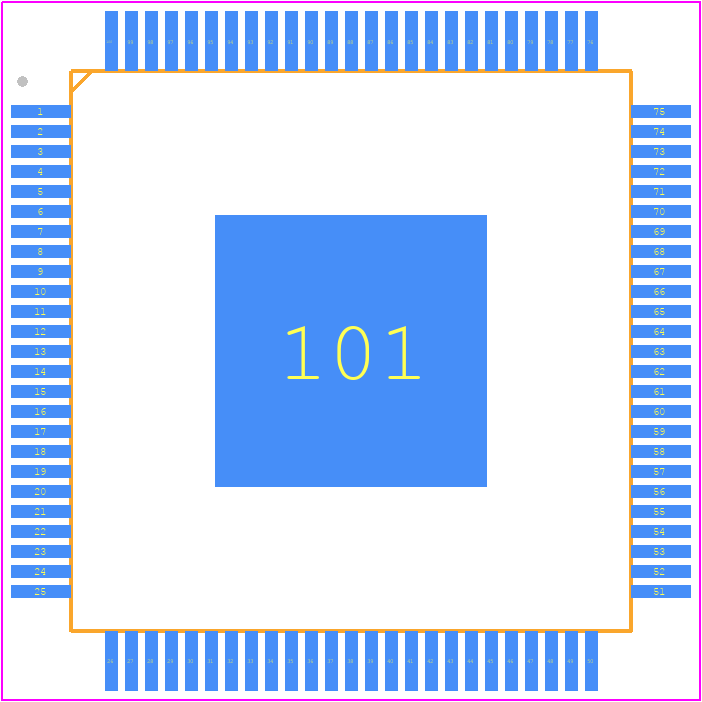

SPC58EC74E3FMC1X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eTQFP100_2022
click to zoom
3D Models
SPC58EC74E3FMC1X - STMicroelectronics - 3D model - Quad Flat Packages - eTQFP100_2022
click to zoom

SPC58EC74E3FMC1X Details

  • Manufacturer Part Number:

    SPC58EC74E3FMC1X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-100

  • Country Of Origin:

    France, Italy

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of I/O Lines:

    78

  • Number of Serial I/Os:

    18

  • Number of Terminals:

    100

  • Number of Timers:

    12

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    425984

  • ROM (words):

    3145728

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Speed:

    160 MHz

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC58EC74E3FMC1X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the SPC58EC74E3FMC1X evaluation board user manual, which can be used as a reference for custom board design. Additionally, STMicroelectronics also provides a PCB layout checklist document that highlights the critical layout considerations for the device.
  • The SPC58EC74E3FMC1X has several low-power modes, including Sleep, Stop, and Standby. To configure the device for low-power mode, refer to the device's datasheet and the SPC58ECxx microcontroller family's low-power mode application note. The application note provides detailed information on how to configure the device's registers and peripherals to achieve low power consumption.
  • The SPC58EC74E3FMC1X has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to consult the device's datasheet and the SPC58ECxx microcontroller family's reliability report for more information on the device's temperature-related specifications.
  • The SPC58EC74E3FMC1X has a built-in secure boot mechanism that ensures the authenticity and integrity of the firmware. To implement secure boot, refer to the device's datasheet and the SPC58ECxx microcontroller family's secure boot application note. The application note provides detailed information on how to configure the device's registers and peripherals to enable secure boot.
  • The SPC58EC74E3FMC1X can use either an external crystal oscillator or an external ceramic resonator as the clock source. STMicroelectronics recommends using a crystal oscillator with a frequency range of 4-32 MHz, or a ceramic resonator with a frequency range of 4-16 MHz. The recommended oscillator specifications are provided in the device's datasheet.
