SPC58EC80E7FMC1X - STMicroelectronics

Description: SPC58 C Line - 32 bit Power Architecture automotive MCU Dual z4 cores 180 MHz, 4 MBytes Flash, HSM, ASIL-B

Download SPC58EC80E7FMC1X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58EC80E7FMC1X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

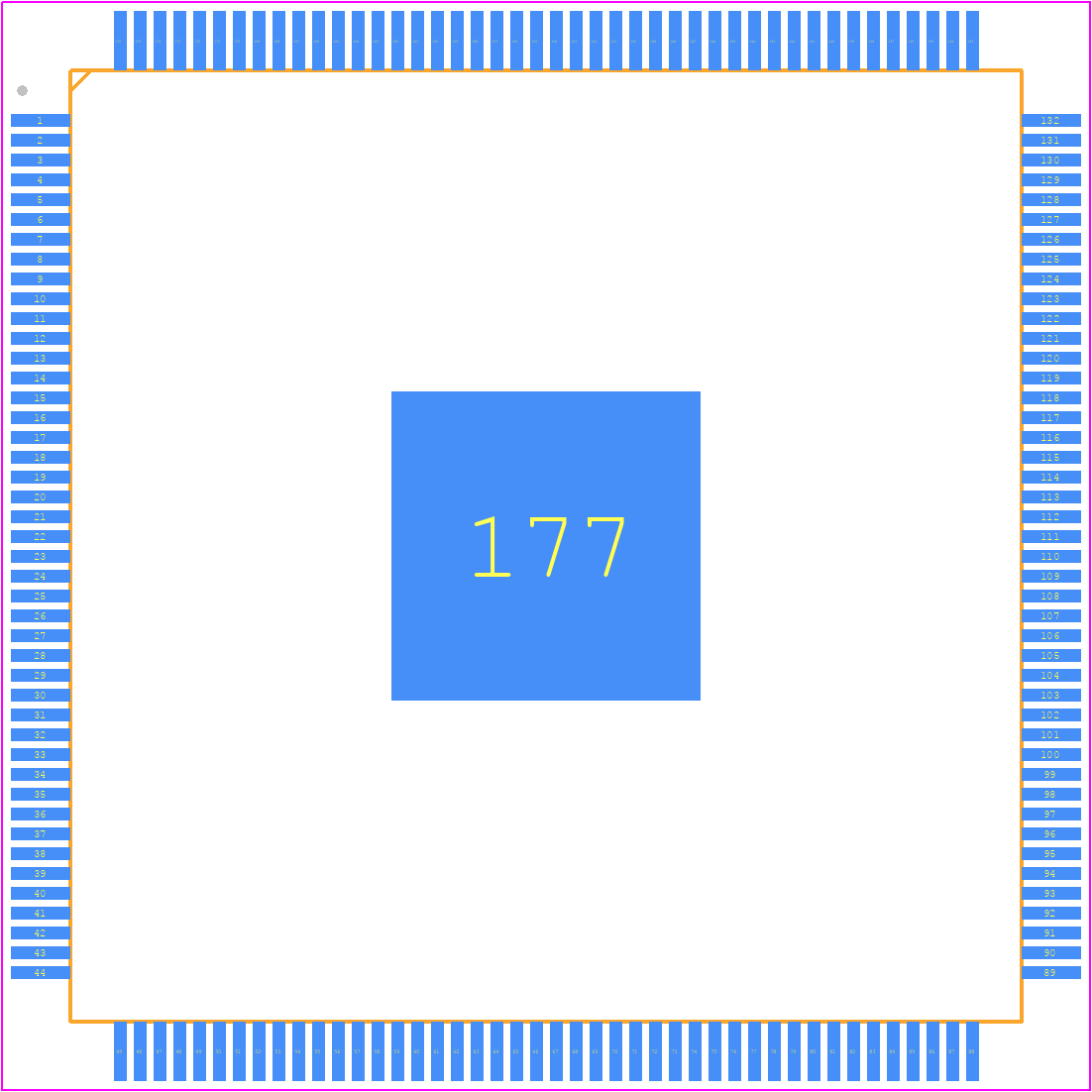

SPC58EC80E7FMC1X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eLQFP176 package
click to zoom
3D Models
SPC58EC80E7FMC1X - STMicroelectronics - 3D model - Quad Flat Packages - eLQFP176 package
click to zoom

SPC58EC80E7FMC1X Details

  • Manufacturer Part Number:

    SPC58EC80E7FMC1X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-176

  • Country Of Origin:

    France, Italy

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    E200Z4

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    64

  • Number of External Interrupts:

    1

  • Number of I/O Lines:

    154

  • Number of Serial I/Os:

    18

  • Number of Terminals:

    176

  • Number of Timers:

    12

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP176,1.0SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    524288

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    160 MHz

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC58EC80E7FMC1X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and thermal management guidelines in the SPC58EC80E7FMC1X application note (AN5273) and the SPC58xx microcontroller family PCB layout guidelines (AN5163). These documents provide detailed information on component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The SPC58EC80E7FMC1X has several low-power modes, including Sleep, Stop, and Standby modes. Configuration and power consumption characteristics are described in the SPC58EC80E7FMC1X datasheet and the SPC58xx microcontroller family low-power modes application note (AN5272). Additionally, STMicroelectronics provides a power consumption calculator tool to help estimate power consumption in different operating modes.
  • The recommended oscillator and clock configuration settings for the SPC58EC80E7FMC1X are described in the SPC58EC80E7FMC1X datasheet and the SPC58xx microcontroller family clock configuration application note (AN5164). These documents provide information on the available clock sources, clock frequencies, and configuration options to ensure optimal performance and reliability.
  • STMicroelectronics provides a secure boot and firmware update solution for the SPC58EC80E7FMC1X through the SPC58xx microcontroller family secure boot and firmware update application note (AN5271). This document describes the secure boot process, firmware update mechanisms, and cryptographic techniques to ensure the integrity and authenticity of the firmware.
  • STMicroelectronics provides a range of development tools and software frameworks for the SPC58EC80E7FMC1X, including the SPC5-STUDIO development environment, the SPC5- Compiler, and the AUTOSAR software framework. Additionally, third-party development tools and software frameworks, such as Keil µVision and IAR Embedded Workbench, are also available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPC58EC80E7FMC1X Overview

Use the download button to access the SPC58EC80E7FMC1X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPC58, or try a keyword search, such as Microcontrollers
