SPC58EE80E7QMHAY - STMicroelectronics

Description: 32-bit Power Architecture microcontroller for automotive ASIL-D applications

Download SPC58EE80E7QMHAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58EE80E7QMHAY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

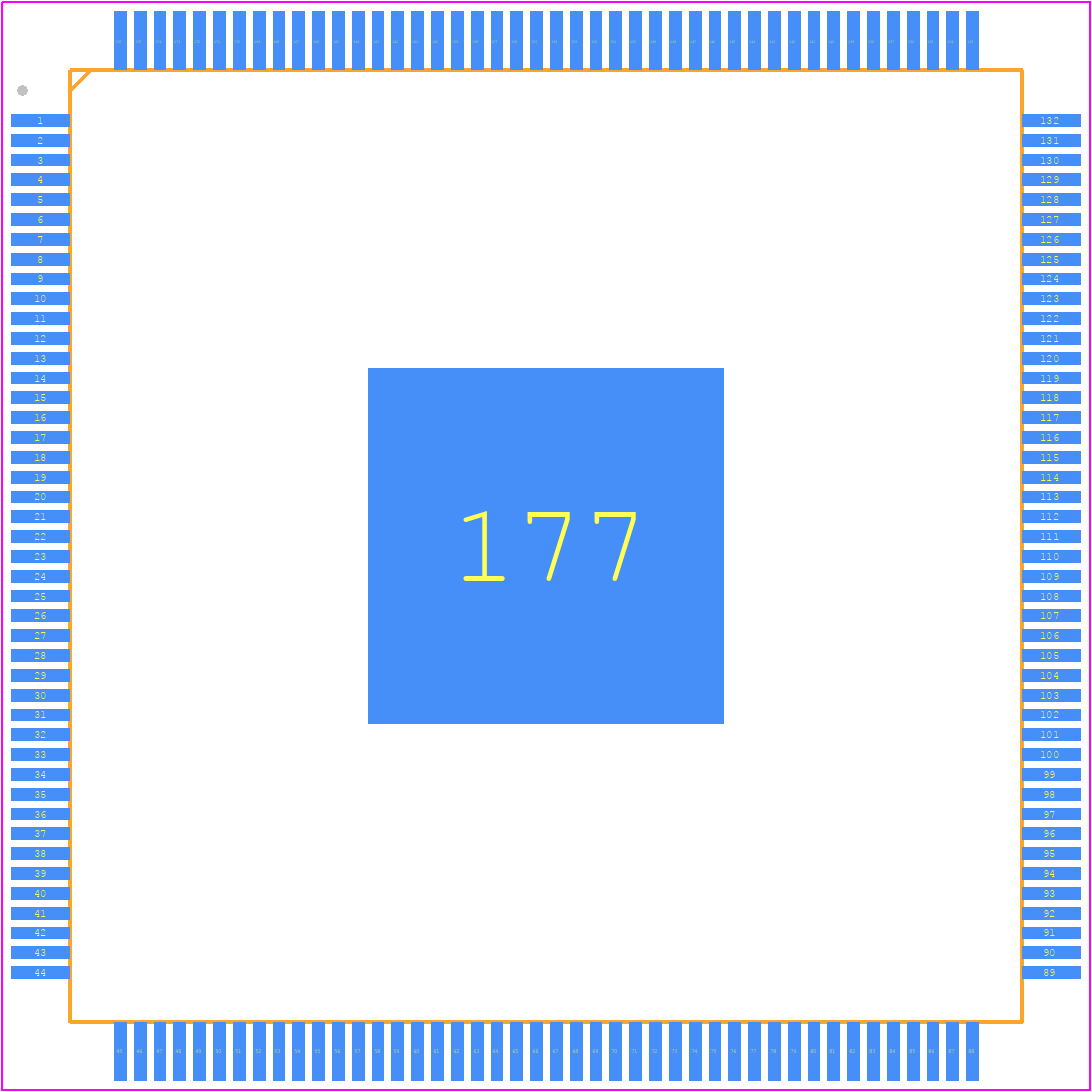

SPC58EE80E7QMHAY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eLQFP176_2
click to zoom
3D Models
SPC58EE80E7QMHAY - STMicroelectronics - 3D model - Quad Flat Packages - eLQFP176_2
click to zoom

SPC58EE80E7QMHAY Details

  • Manufacturer Part Number:

    SPC58EE80E7QMHAY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-176

  • Country Of Origin:

    Malta, Taiwan

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Date Of Intro:

    2018-04-20

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Additional Feature:

    ALSO AVAILABLE GTM(40 I/P CH, 104 O/P CH), CAN(8)

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    SPC58

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    96

  • Number of External Interrupts:

    1

  • Number of Terminals:

    176

  • Number of Timers:

    156

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP176,1.0SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    622592

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100; ISO 26262-ASIL D

  • Seated Height-Max:

    1.6 mm

  • Speed:

    180 MHz

  • Supply Current-Max:

    600 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

SPC58EE80E7QMHAY Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and thermal management guidelines in their application notes and design resources. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • To optimize power consumption, engineers can use the device's power-saving modes, such as sleep and standby modes, and optimize their software to minimize CPU usage and peripheral activity. Additionally, they can use the device's built-in power management features, such as voltage regulators and power gates.
  • Engineers should follow STMicroelectronics' guidelines for EMC and EMI, including proper PCB layout, shielding, and filtering. They should also ensure that their design meets the relevant industry standards and regulations for EMC and EMI.
  • Engineers should implement secure boot mechanisms, use secure communication protocols, and ensure that their software is validated and verified to prevent unauthorized access or tampering. They should also follow STMicroelectronics' guidelines for secure programming and use of the device's security features.
  • STMicroelectronics provides reliability and quality metrics, such as MTBF and FIT rates, in their datasheets and quality documents. Engineers should follow STMicroelectronics' guidelines for reliability and quality, including proper component selection, PCB design, and manufacturing processes.
