SPC58NE84E7QMSAR - STMicroelectronics

SPC58NE84E7QMSAR Details

• Manufacturer Part Number:

  SPC58NE84E7QMSAR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

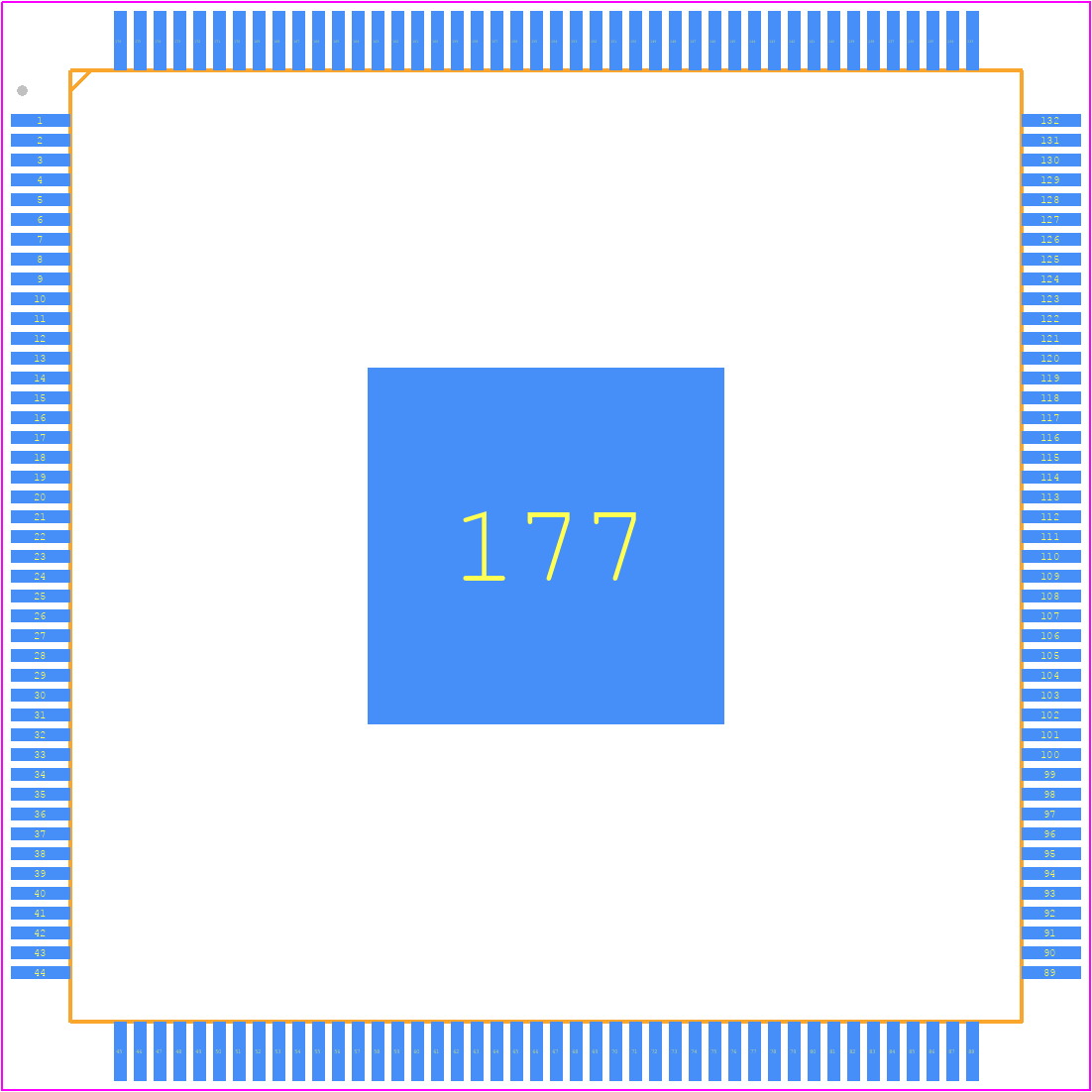

• Package Description:

  LQFP-176

• Country Of Origin:

  Malta

• ECCN Code:

  5A991.B.4.A

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  30 Weeks

• Date Of Intro:

  2018-04-20

• Manufacturer:

  STMicroelectronics

• YTEOL:

  13

• Has ADC:

  YES

• Additional Feature:

  ALSO AVAILABLE GTM(40 I/P CH, 104 O/P CH), CAN(8)

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  SPC58

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQFP-G176

• Length:

  24 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  96

• Number of External Interrupts:

  1

• Number of Terminals:

  176

• Number of Timers:

  156

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  HQFP176,1.0SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• RAM (bytes):

  622592

• ROM (words):

  6438912

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100; ISO 26262-ASIL D

• Seated Height-Max:

  1.6 mm

• Speed:

  180 MHz

• Supply Current-Max:

  600 mA

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
