SPC58NG84C3QTH0X - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Download SPC58NG84C3QTH0X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58NG84C3QTH0X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

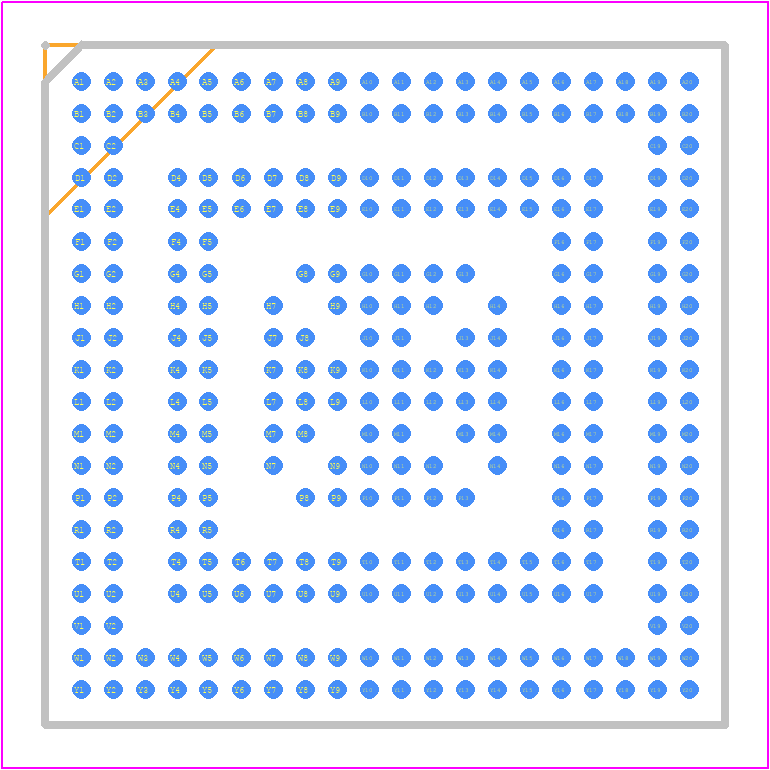

SPC58NG84C3QTH0X - STMicroelectronics PCB footprint - BGA - BGA - FPBGA292
click to zoom
3D Models
SPC58NG84C3QTH0X - STMicroelectronics - 3D model - BGA - FPBGA292
click to zoom

SPC58NG84C3QTH0X Details

  • Manufacturer Part Number:

    SPC58NG84C3QTH0X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-292

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    SPC58

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PBGA-B292

  • Length:

    17 mm

  • Number of DMA Channels:

    96

  • Number of Terminals:

    292

  • Number of Timers:

    12

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    622592

  • ROM (words):

    6291456

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100; ISO 26262

  • Seated Height-Max:

    1.8 mm

  • Speed:

    180 MHz

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

SPC58NG84C3QTH0X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the SPC58NG84C3QTH0X application note (AN5273) and the SPC58NG84C3QTH0X datasheet. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and power supply decoupling.
  • The SPC58NG84C3QTH0X has several low-power modes, including Sleep, Stop, and Standby. To configure the device for low-power mode, refer to the SPC58NG84C3QTH0X datasheet and the STMicroelectronics application note (AN5273) for detailed instructions on how to use the Power Management Unit (PMU) to control the power modes.
  • The SPC58NG84C3QTH0X has an operating temperature range of -40°C to 125°C (junction temperature). However, the device can be operated at a lower temperature range depending on the specific application requirements. It's essential to consult the datasheet and application notes for more information on temperature-related specifications.
  • The SPC58NG84C3QTH0X has a built-in Secure Boot mechanism that ensures the authenticity and integrity of the firmware. To implement secure boot, refer to the SPC58NG84C3QTH0X datasheet and the STMicroelectronics application note (AN5273) for detailed instructions on how to use the BootROM and the Secure Boot mechanism.
  • The SPC58NG84C3QTH0X can use external oscillators or crystals to generate the clock signal. STMicroelectronics recommends using a 16 MHz or 20 MHz oscillator, depending on the specific application requirements. Refer to the datasheet and application notes for more information on oscillator selection and configuration.
